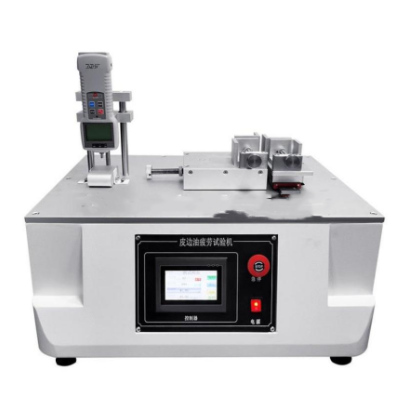

The Leather Edge Oil Fatigue Testing Machine is designed to evaluate the fatigue resistance of edge coatings applied on leather, synthetic leather, or recycled leather. Edge oil, typically composed of polyvinyl chloride, polyurethane, and other resins, is applied to leather edges for protection and aesthetic finishing. This instrument simulates repeated mechanical stress by kneading or rolling the coated leather edges under controlled loads, assessing durability and performance under real-world conditions.

Application

(1) Testing leather edge oil fatigue resistance in footwear manufacturing.

(2) Quality assessment of leather goods such as handbags, belts, and wallets.

(3) Evaluation of synthetic leather and PU-coated fabrics for edge coating durability.

(4) R&D of new edge oil formulations and coating materials.

(5) Inspection of recycled leather products for coating performance.

(6) Testing of colored or pigmented edge coatings to ensure color stability and adhesion.

(7) Industrial quality control for leather processing plants and finishing workshops.

Standards

(1) QB/1333-2018 – Leather edge oil fatigue resistance testing standard.

(2) QB/1618-2018 – Leather products edge coating performance specification.

(3) QB/T 5246-2018 – Testing method for coated leather edge fatigue.

(4) ISO 11640 – Leather — Tests for color fastness (optional for related edge oil evaluation).

(5) ASTM D1790 – Standard test method for flexing resistance of coated leather.

(6) EN ISO 5402 – Leather and coated leather — Determination of surface durability.

Features

(1) Touchscreen controller for easy operation and digital parameter setting.

(2) Adjustable transverse speed and travel for precise simulation of mechanical stress.

(3) Multi-directional sample clamps allowing both longitudinal and lateral movement.

(4) Configurable load-bearing system for testing under various applied weights.

(5) Automated counting system up to eight digits for long-cycle tests.

(6) Compact and robust design suitable for laboratory and production environments.

Parameters

Accessories

(1) Sample clips (pair)

(2) Calibration weight set

(3) Power cable

(4) Product qualification certificate

(5) User manual

(6) Delivery and acceptance documentation

Test Procedures

(1) Prepare the leather sample with edge oil applied.

(2) Install the sample in the clamps, ensuring proper alignment.

(3) Set the desired load on the longitudinal loading system.

(4) Adjust transverse speed and travel distance according to the testing plan.

(5) Start the machine and monitor the test cycle.

(6) Record the number of cycles until visible fatigue, cracking, or failure occurs.

(7) Analyze results for edge oil performance and durability.
