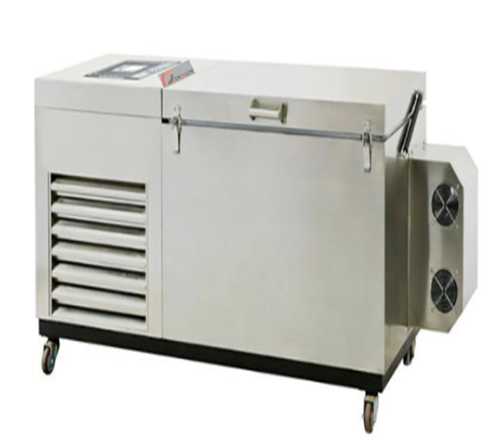

The Footwear Cold Insulation Tester is designed to evaluate the low-temperature performance of finished shoes and footwear materials, including rubber, soles, synthetic leather, plastics, and other components. The instrument provides a controlled cold environment to determine material and shoe adaptability to cold climates or harsh low-temperature terrains. Constructed from rust-resistant stainless steel (SUS), the tester can be equipped with various fixtures to meet diverse standard testing requirements.

Applications

(1)Testing finished shoes for cold climate adaptability.

(2)Evaluation of rubber, synthetic leather, plastic, and sole materials under low temperatures.

(3)Thermal insulation performance assessment of footwear.

(4)Cold flex and cold impact testing of shoes and components.

(5)Quality control in footwear manufacturing for winter shoes and insulated footwear.

(6)Research and development of footwear for cold regions.

(7)Verification of compliance with industry-specific cold resistance standards.

Standards

(1)ASTM D1790 — Standard Test Methods for Footwear Cold Resistance

(2)EN ISO 20344 — Personal Protective Footwear – Test Methods

(3)HG/T 2411 — Footwear Cold Resistance Test

(4)HG/T 2871 — Testing Methods for Low-Temperature Footwear

(5)DIN 53351 — Material Cold Flexibility Test

(6)SATRA TM55 — Cold Resistance Test for Footwear

(7)Adidas GE-24. GE-57 — Industry Footwear Cold Testing Protocols

(8)GB/T 20991-2007 — Footwear Cold Resistance Test Method

Features

(1)Balanced temperature and humidity control system for precise environmental conditioning.

(2)Wide temperature range from -25℃ to +150℃, suitable for various cold resistance tests.

(3)High temperature uniformity (≤2℃) and minimal fluctuation (≤±0.5℃).

(4)Accurate temperature measurement with ±0.2℃ accuracy.

(5)Rapid heating and cooling: +25℃→+85℃ in ~30 min, +25℃→-40℃ in ~50 min (no load).

(6)Customizable thermal test fixtures for low-temperature evaluation, including cold medium, test copper plate, and thermometer.

(7)Durable stainless steel construction resistant to rust and wear.

(8)Lead hole (φ50mm) with rubber plug for instrumentation or probes.

(9)Adjustable heating rate (3–5℃/min) and cooling rate (0.7–1℃/min).

(10)Compatible with various low-temperature testing methods, including cold flex, impact, and insulation tests.

Technical Parameters

Accessories

(1)Cold medium: stainless steel balls (Ø5 mm, 4 kg total).

(2)Test copper plate (350×150×5 mm).

(3)Thermometer (±0.5℃ accuracy).

(4)Rubber plug for lead hole.

(5)User manual and calibration certificate.
