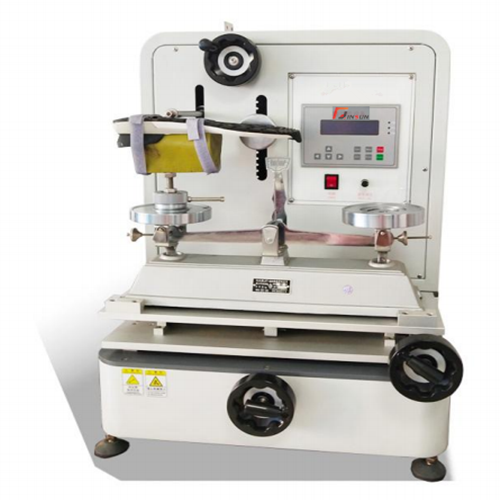

Shoe Abrasion Tester
The Shoe Abrasion Tester is designed to evaluate the wear resistance of shoe soles and sole pieces. The instrument uses a rotary grinding head that applies a controlled vertical load on the sample while rotating at a standardized speed. After testing, the wear length or mass loss of the sample is measured to assess its durability, providing quantitative data for quality control, product development, and standard compliance.
Application
This tester is suitable for:
(1) Footwear Manufacturers: To verify the durability of finished soles and sole materials.
(2) Quality Inspection Laboratories: For conformity testing according to national standards.
(3) R&D Centers: To evaluate new sole materials or designs under controlled wear conditions.
(4) Material Testing: For evaluating abrasion resistance of rubber, thermoplastic, or composite sole materials.
Standards
(1) GB/T 3903.2-2017 – Testing of shoe wear resistance
(2) QB/T 4329-2012 – Shoe sole abrasion testing
(3) Applicable international or regional standards for abrasion resistance upon request
Parameters
| Parameter | Specification |
|---|---|
| Rotary Speed | 191 ± 5 r/min (adjustable) |
| Load Applied | 500 g (optional: 5 g–500 g) |
| Test Duration | 20 min (adjustable) |
| Grinding Wheel Dimensions | Diameter 20 ± 0.1 mm, Thickness 4 ± 0.1 mm |
| Grinding Wheel Material | T12 Steel, 72 teeth, Tooth angle 90° ± 5°, Tip width 0.2 ± 0.05 mm, Tip roughness Ra = 3.2 μm, Hardness HRC ≥ 55, Coaxiality 0.03 mm |
| Balance | 5000 g range, 0.5 g accuracy |
| Sample Volume (L×W×H) | 560 × 510 × 830 mm |
| Net Weight | 70 kg |
| Power Supply | AC 220V, 10A |
| Environmental Conditions | Temperature 23 ± 2 °C, Standard humidity |
Features
(1) Quantitative Wear Measurement: Provides wear length or mass loss for precise evaluation of sole durability.
(2) Standard-Compliant Grinding: Uses a precisely specified grinding wheel to ensure consistent abrasive action.
(3) Controllable Test Parameters: Adjustable speed, load, and time for flexible testing.
(4) Integrated Balance: Facilitates mass-based wear assessment with high accuracy.
(5) Robust Construction: Designed for repeated use in laboratory or quality control environments.
(6) Sample Holder: Ensures secure positioning of soles or sole pieces during testing.
(7) User-Friendly Operation: Timer and control system allow reliable, repeatable testing.
Test Procedures
(1) Secure the shoe sole or material sample in the sample holder.
(2) Set the load, speed, and test duration according to the test requirements.
(3) Start the rotary grinding head and conduct the abrasion test.
(4) Upon completion, measure the wear length or mass loss using the integrated balance.
(5) Record and analyze the results to evaluate material durability.
Maintenance Information
(1) Clean the grinding wheel and sample holder regularly to remove debris.
(2) Inspect the grinding wheel for wear or damage, and replace when necessary.
(3) Verify balance calibration periodically for accurate mass measurement.
(4) Ensure electrical connections and motor performance are maintained for consistent operation.
Conclusion
The Shoe Abrasion Tester provides accurate, repeatable evaluation of footwear sole durability, enabling manufacturers and laboratories to ensure product quality, compliance with national standards, and support material development.
