Water Vapour Permeability Tester
The Water Vapour Permeability Tester is a constant temperature and humidity instrument designed to evaluate the moisture permeability of waterproof-breathable textiles, sportswear fabrics, polymer films, processed paper, and other moisture-resistant packaging materials. By sealing samples onto cups filled with anhydrous calcium chloride and exposing them to controlled climate conditions, the instrument calculates water vapour transmission through weight change. With precise PID environmental control, adjustable airflow, and a rotating sample holder, it ensures highly stable, repeatable, and multi-standard test results.
Application
Suitable for testing water vapour permeability of sportswear fabrics, waterproof-breathable textiles, outdoor functional materials, composite membranes, polymer films, processed paper, and various moisture-proof packaging materials. Its rotating sample holder and adjustable airflow ensure uniform test conditions, making it ideal for high-performance moisture management fabrics.
Standards
ASTM Standards
ASTM E96 / E96M – Water Vapour Transmission / Permeance Test
ISO / JIS / GB Standards
JIS L1099 – Water Vapour Permeability of Textiles
GB/T 12704 – Test Method for Water Vapour Transmission of Textiles
ISO (Equivalent methods referring to ASTM E96)
Features
Compatible with ASTM, ISO, JIS and GB standards for moisture permeability testing.

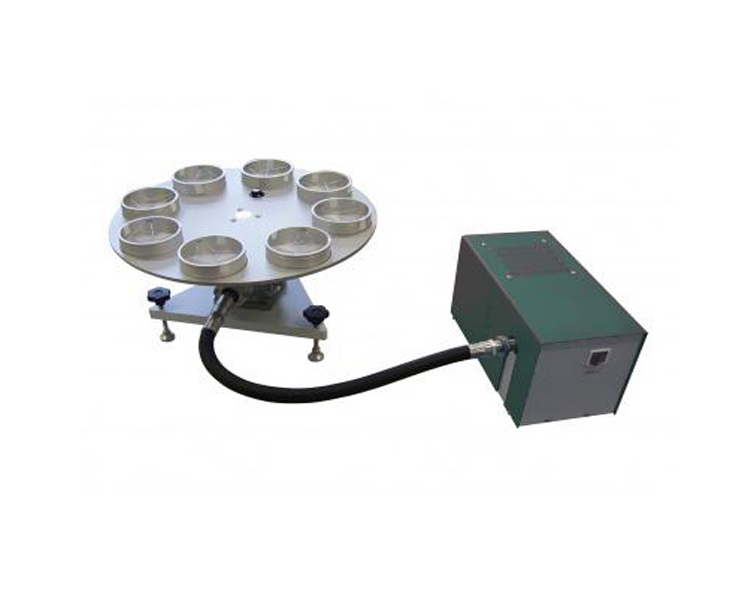

Rotating sample holder with adjustable speed for more uniform testing than fixed holders.
Adjustable airflow with imported wind speed sensors for excellent accuracy and stability.
PID temperature and humidity control to minimize fluctuations and prevent overshoot.
Built-in calibration functions to prevent long-term sensor drift.
High-precision temperature and humidity sensors provide stable and reliable data.
SCM control system with a color touch screen for intuitive and intelligent operation.
Automatic calculation of WVT, WVP and PV values directly on the touch screen.
PC software for data recording, temperature/humidity curve tracking and report printing.
Parameters
| Item | Specification |
|---|---|
| Temperature Range | 20–60 ℃ |
| Humidity Range | 40–95% RH (no load) |
| Temperature Accuracy | ±0.5 ℃ |
| Humidity Accuracy | ±3% RH |
| Freezer | Air-cooled airtight compressor |
| Cooler | Finned-type heat exchanger |
| Humidifier | Pot-type (with anti-dry protection) |
| Heater | Finned heater (with over-temperature guard) |
| Fans | 2 sets (upper and lower) |
| Airflow Speed | 0.5–1.5 m/s |
| Sample Holder | Rotating, 2 sections (270 mm diameter) |
| Test Chamber Size | W400 × D360 × H500 mm approx. |
| Power Supply | AC 220V, 50 Hz |
| Overall Dimensions | W1100 × D550 × H1470 mm approx. |
Accessories
Standard Accessories
Moisture permeability test cups
Anhydrous calcium chloride set
PC software and communication cable
Wind speed calibration device
Temperature and humidity sensors
Optional Accessories
Standard calibration membranes
Large-volume test cups
External T/H calibration kit
Data printing module
Operation & Maintenance
Inspect test cups, sealing rings and desiccant before installation.
Prepare and seal the sample according to the selected standard.
Set temperature, humidity, airflow and rotation speed.
Place sealed cups into the chamber and start constant climate control.
Record weight change according to test intervals.
Calibrate sensors periodically to maintain accuracy.
Keep the wind speed sensor and sample holder clean.
Remove scale from the humidifier regularly.
Ensure adequate ventilation for compressor operation.
Dry the chamber completely before long-term shutdown.
