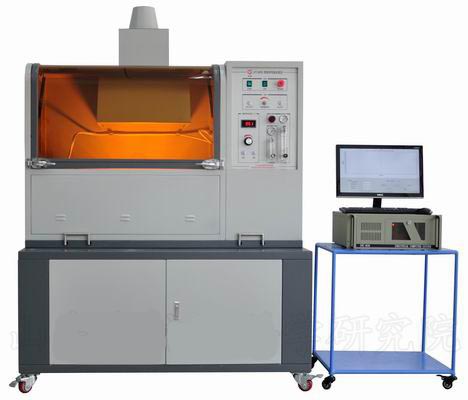

Thermal protective clothing and some fire-retardant properties of the material refers that human body carry out security protection who work under high temperature conditions, so as to avoid the human body's high temperature injury. In theory, there are three forms of heat damage to the human body:

thermal convection; B. heat transfer; C. thermal radiation;

In general, the practical application is more than the above two or three kinds of mixing effect. So the thermal protection should be used for different purposes and use of the environment to highlight its certain thermal protection performance.

I. Thermal Radiation Protection Performance Test Method (RPP Test) Radiant Protective Performance;

II. Thermal Radiation and Heat Convection Mixing Protective Performance Test Method (TPP Test) Thermal Protective Performance;

The RPP test is mainly used to determine the radiant thermal protection performance of thermal protective clothing. Since thermal radiation is one of the main heat transfer forms that cause thermal damage. The method can better test and evaluate the thermal protection performance of thermal protective clothing from one aspect, and has been widely used in the field of forest fire.

Application

Outdoor Sports Gear: Evaluating the waterproof breathability and thermal balance of fabrics for jackets, ski suits, and mountaineering apparel.

Specialized Protective Clothing: Testing thermal protection and moisture-wicking performance of firefighting suits, military combat uniforms, and medical protective garments.

High-Performance Fabrics: Evaluating multilayer composite materials for extreme environments like spacesuits and deep-sea diving suits.

Bedding & Interiors: Monitoring thermal resistance properties of sleeping bags, carpets, and automotive seat materials to enhance comfort at home and on the go.

Membrane Material Research: Assisting R&D personnel in testing technical specifications of moisture-permeable components like microporous membranes and non-porous hydrophilic films.

Standards

NFPA 1971：Standard on Protective Ensembles for Structural Fire Fighting and Proximity Fire Fighting

NFPA 2112：Standard on Flame-Resistant Garments for Protection of Industrial Personnel Against Flash Fire

BS EN ISO 6942：Protective clothing — Protection against heat and fire — Method of test: Evaluation of materials and material assemblies when exposed to a source of radiant heat

EN 366：Protective clothing — Protection against heat and fire — Method of test: Determination of resistance to molten metal splash

ASTM F2702：Standard Test Method for Determining the Heat Transfer Through Materials Used in Protective Clothing Using a Hot Surface

ASTM F1939：Standard Test Method for Radiant Heat Resistance of Flame Resistant Clothing Materials With Continuous Heating

Feature

◆ Evaluation of flame retardant properties of flame retardant materials

◆ Detect abnormalities and reduce accidents

◆ Calculate the RPP value

◆ Evaluate thermal protection performance

◆ Improve job safety

◆ Improve the quality control system

Technical Parameters

Accessories

(1) Porous Test Plate Assembly

(2) Preheating Plate with Protective Ring

(3) High-Precision Water Supply System

(4) Semipermeable Membrane (for Wet Resistance Testing)

(5) Ambient Temperature and Humidity Sensor

(6) Computer Data Acquisition Software System

Test Procedures

System Preheating: Power on the instrument, set the test plate temperature (e.g., 35°C) and ambient chamber temperature/humidity, allowing the system to reach stable equilibrium.

Thermal Resistance Test (Dry Test): Cover the test plate with a dry sample and measure the constant heat flux required to maintain the temperature difference under water-free conditions.

Wet Resistance Test (Wet Test): Cover the test plate with a semi-permeable membrane simulating skin and inject distilled water.

Sample Installation: Place the test sample flat over the semi-permeable membrane and activate the parallel airflow system.

Data Acquisition: After the system re-establishes dynamic equilibrium, record the heat consumed by water vapor evaporation via software.

Calculation Results: Software automatically subtracts no-load resistance, outputting the material's final thermal resistance ($R_{ct}$) and wet resistance ($R_{et}$) values.
