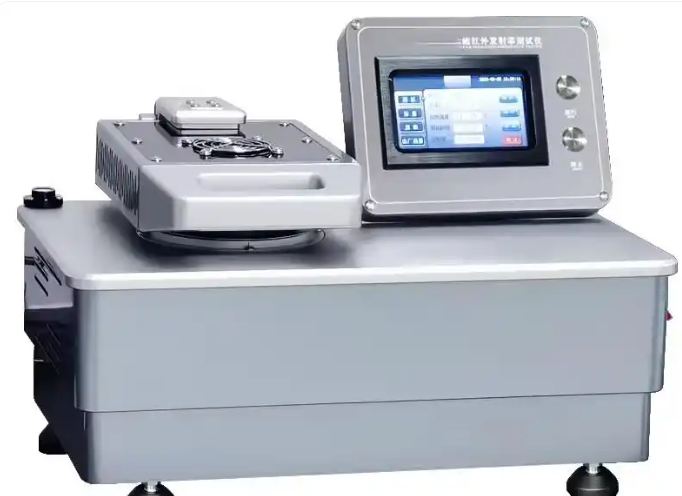

Textile Far-infrared Emissivity Tester

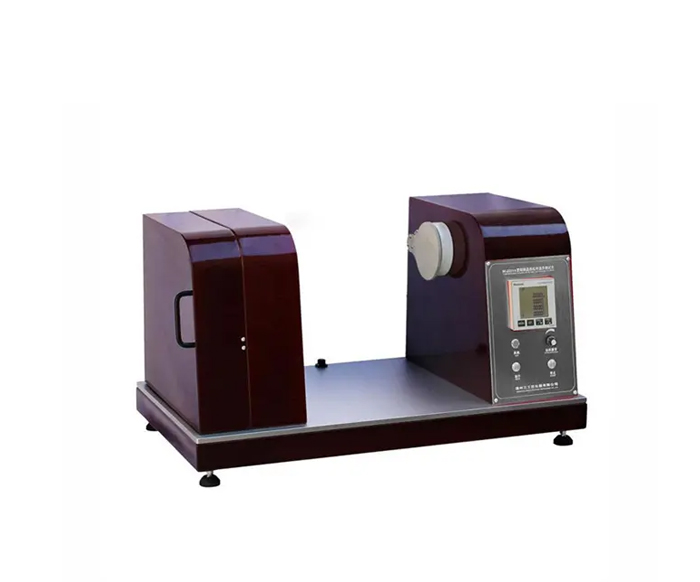

The Textile Far Infrared Radiation Temperature Rise Tester is a high-precision analytical instrument specifically engineered to evaluate the far-infrared thermal performance of functional textiles. By simulating infrared radiation exposure and monitoring the resulting thermal response, this tester allows you to determine the temperature rise efficiency and heat-retention capabilities of advanced materials. It integrates a standardized 150W radiation source with high-speed thermal sensors to provide you with objective, repeatable data on how a fabric interacts with infrared energy—a critical metric for verifying the therapeutic or "self-heating" claims of modern performance textiles.

Applications

Textile Far Infrared Radiation Temperature Rise Tester is used for various textiles including fibers, yarns, fabrics, nonwovens, and their products. It employs temperature rise testing to determine the far-infrared performance of textiles.

Standards

GB/T 30127-2013 ：“Textiles - Testing and Evaluation of Far-Infrared Properties” Clause 4.2 Test Method for Far-Infrared Radiation Temperature Rise

T/CAS 115.5-2021:Health Care Textiles — Part 5: Far Infrared

Features

1. Features an industrial-grade color touchscreen display and control system with an intuitive human-machine interface that is simple to use and enhances operational convenience.

2. Utilizes an automatic measurement mode, enabling one-touch initiation to automatically complete the testing process.

3. Incorporates high-precision sensors capable of rapid response and accurate measurement of current temperature.

Parameters

Parameter Item

Parameter Value

Specimen Holder

500mm distance from radiation source to specimen surface

Radiation Source

Main wavelength 5μm~14μm, radiation power 150W

Specimen Irradiation Area

φ60~φ80mm

Temperature Range & Accuracy

15℃~50℃, ±0.1℃ precision, ≤1s response time

Specimen Types

  • Yarns: ≥60mm square metal frame

  • Fibers: φ60mm×30mm open cylindrical container

  • Fabrics: φ≥60mm

Accessories

(1) Standard Specimen Disk: For flat fabric samples.

(2) Square Metal Frame Fixture: Specialized for yarn specimens.

(3) Open Cylindrical Container: For loose fiber testing.

(4) High-Precision Temperature Probe: Rapid-response contact or non-contact sensor (model dependent).

(5) Integrated Thermal Printer: For immediate generation of test reports.

(6) Power Cable and Calibration Certificate.

Test Procedures

I. Power-Up and Setup

1. Connect Power:

Turn on the instrument's power switch to enter the setup interface.

2. Parameter Settings:

Irradiation Power: Typically set to 150W.

Test Duration: Generally 30 seconds.

Test Cycles: Set according to standard requirements, e.g., 5 cycles.

II. Sample Installation

1. Fixture Selection:

Thin Samples: Install thin-sample fixture and tighten the nut.

Thick Samples: Place directly onto the disk, aligning with the center.

2. Sample Placement:

Ensure the test line is positioned at the center point.

Place the sample face up and secure the edges with a ruler.

III. Test Procedure

1. Preheat: Click “Turn on Light” to preheat the instrument.

2. Start Test:

Click the test interface; timing starts for 30 seconds.

Observe temperature rise value, initial temperature, and final temperature.

Automatic Result Display: Data appears automatically upon test completion.

IV. Data Processing

Data Retrieval: Click Details to view test results.

Report Printing: Click Print to generate the test report.
