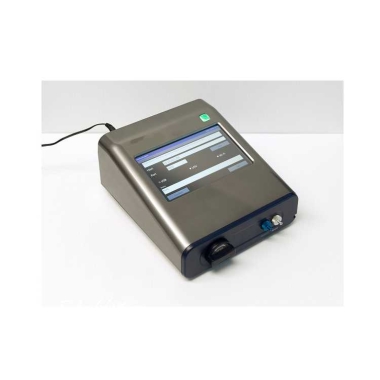

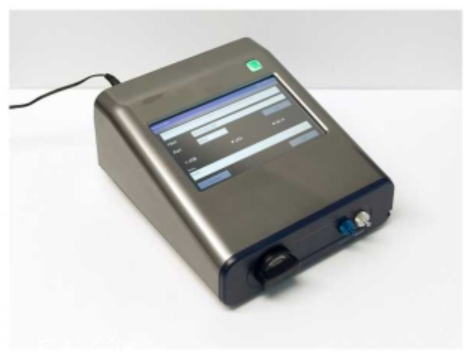

Masks Compact Tester
Introduction
Masks tightness tester with fast and simple operation as design concept, specifically measuring the concentration and proportion of inside and outside aerosol particles of the various respiratory protection masks, showing the tightness value of the mask.
Application
There is no other adhesion degree value tester, can be quantitative for all types of respirator to do adhesion degree test, the adhesion tester can do adhesion degree test for gas mask, SCBAs and other respirator.
Features
Simple to operate , easy to use;
Type of independent operation - no external connection to the computer;
Optional mask selection adapter allows a variety of mask compact degree detection;
Color touch screen can be operated with a finger or pen;
FitPro + TM compact degree test software can be automatically finish the test;
Use an external computer to generate a report, print a compact degree test card;
The compact degree is greater than 10.000;
Use the microscopic particles in the ambient air to calculate the mask compact factor;
Provide initial and follow-up training interactive training tools
Basic parameters
| Items | Parameters |
| The range of compact degree | More than 10.000. 1-200 |
| The accuracy of compact degree | ± 10% of reading |
| Size | 17 cm x 22 cm x 24 cm (6.75 in x 8.5 in x 9.5 in) |
| Weight | Host 3.1 kg (6.8 lb.), standard accessories and carrying case 8.2 kg (18 lb.) |
| Power supply | 100 to 250 VAC, 50 to 60 Hz |
| Flow | Sampling 350 cm3 / min, total 1000 cm3 / min (nominal) |
| Temperature range | Operating 0 to 35 ° C (32 to 100 ° F) Saving -40 to 70 ° C (-40 to 160 ° F) |
| Alcohol | Working time 6 hours 21 ° C (70 ° F), alcohol type 99.5% + isopropyl alcohol (analytical grade) |
| Portable case size | (HWD) 23 cm x 36 cm x 53 cm (9 in. x 14 in. x 21 in.) |
FAQs
1. What is a Masks Compact Tester?
It is used to evaluate the performance and quality of masks through specified physical and functional tests.
2. What types of masks can be tested?
It can be used for various types of protective, medical, and disposable masks, depending on the applicable testing requirements.
3. What properties can be evaluated?
Depending on the configuration, it can evaluate properties such as mask fit, breathing resistance, filtration performance, or other specified characteristics.
4. Is the tester easy to operate?
Yes. Its compact design and straightforward controls make it suitable for routine laboratory testing and quality control.
5. Where is the Masks Compact Tester used?
It is commonly used in mask manufacturing, quality inspection laboratories, research institutions, and related industries.
