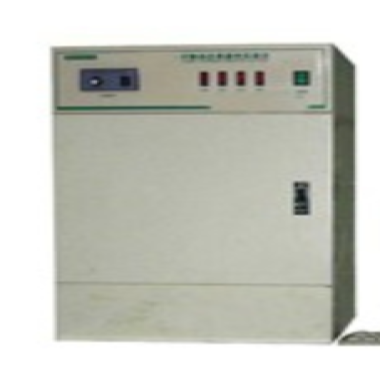

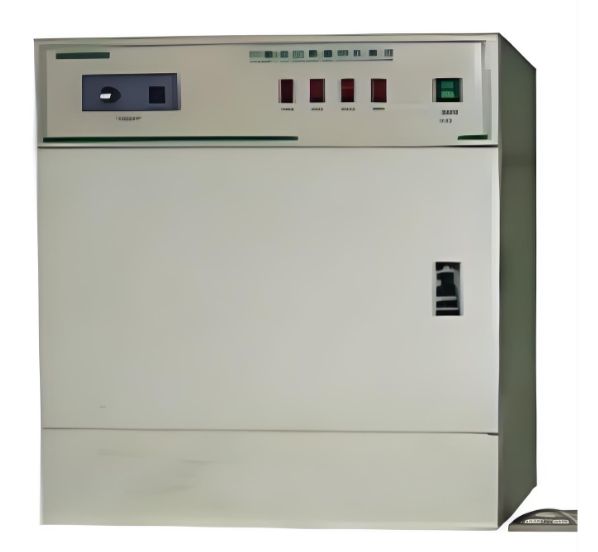

Automatic Fabric Drape Tester STD-AG49


The Automatic Fabric Drape Tester STD-AG49 is used to evaluate the drapeability and deformation characteristics of fabrics by measuring how a fabric sample hangs and forms folds under controlled conditions.

Features

CCD imaging, dynamic and static image processing

A variety of charts and data statistics, analysis, storage, output

Can test samples of all colors do no need to change the background color

Standards

BS EN 9073. ERT 90-1.AFNOR G07-109. UNI 8279.FZ/T 01045. BS 5058. FZ/T 01045

Key Specification

Model

STD-AG49 Automatic Fabric Drape Tester

Work mode

Microcomputer control,

CCD imaging,

computer automatic processing of images and data.

Imaging sensor

CCD

Drape coefficient rage

0～100% ± 2%

Rotation speed

3～80±1r/min

Power supply

AC220V, 50/60HZ

Dimension

60*57*107cm

Weight

50kg









Accessories

Standard Accessories

Sample cutting plate

1set

(Ф240mm, Ф300mm, Ф360mm)

Sample cover

1pc

Calibration plate

3pc (30%, 50%, 70%)

Computer

1set

Printer

1set

Operate software

1set

Serial connector

1pc

Power line

1pc

FAQs

1. What is the STD-AG49 used for?

It is used to evaluate the drape properties of fabrics.

2. What fabrics can be tested?

It can test various woven, knitted, and other flexible textile fabrics.

3. What does the tester measure?

It evaluates the fabric’s drape coefficient and deformation characteristics.

4. Why is fabric drape testing important?

It helps assess the appearance, handle, and suitability of fabrics for garments and other textile products.

5. Who uses the Automatic Fabric Drape Tester?

It is commonly used by textile manufacturers, garment companies, and testing laboratories.
