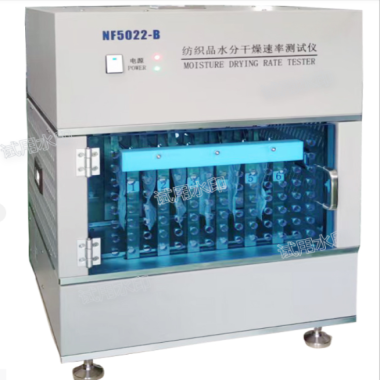

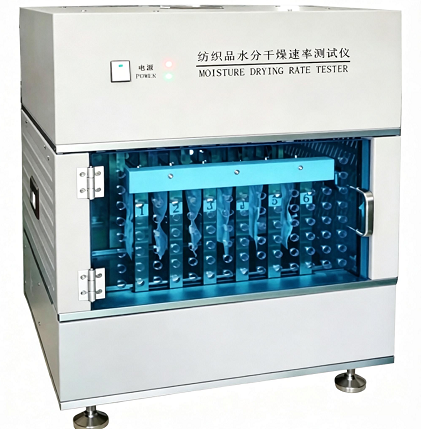

The Textile Water Evaporation Rate Tester is a precision instrument designed to evaluate the moisture evaporation and quick-drying performance of textiles. By measuring the rate of water evaporation from fabric samples under controlled conditions, it provides quantitative, repeatable, and objective data on textile moisture management properties. This instrument is widely used in textile R&D, quality control, and performance verification labs.

Standards

The design and operation of this tester are aligned with key international and national standards related to assessing the moisture management and drying characteristics of textiles, including:

AATCC Test Method 201

AATCC Test Method 199

AATCC Test Method 200

ASTM E96

Product Advantages

This Textile Water Evaporation Rate Tester offers significant advantages for laboratories and manufacturers focused on textile performance:

Objective Performance Evaluation: Provides a quantitative and repeatable method for assessing quick-drying, eliminating subjective evaluations.

Simulates Real-World Conditions: Can simulate conditions similar to those experienced when moisture evaporates from fabric in contact with the skin or in specific environmental conditions.

High Accuracy and Repeatability: Utilizes precise measurement systems (e.g., sensitive balance, controlled environment) to ensure reliable and consistent test results.

Efficient Testing: Allows for relatively quick determination of drying rates compared to some other methods.

Data Analysis Capabilities: Often paired with software for real-time data acquisition, visualization of drying curves, and comprehensive report generation.

Scope of Application

This instrument is used for testing and evaluating the moisture absorption and quick-drying performance of various textiles. The quick-drying property of textiles is assessed by measuring the rate of water evaporation.

Instrument Features

Equipped with imported high-precision balance, accuracy 0.001g.

Institutional self-locking function to prevent accidents after sudden power failure, ensuring safer use.

Uses high-quality drive motors for smooth operation and low noise.

Optimized structural design for precise positioning.

Can test up to 6 workstations simultaneously or select the number of workstations as needed.

Flexibly set the weighing interval time for experiments.

Test termination condition: evaporation rate change does not exceed 1%.

Automatically generates test result curves.

Automatically calculates evaporation rate, ensuring accurate test data.

Technical Parameters

FAQ

1. How does the "6-station independent control" benefit the testing process?

It allows you to run different types of fabrics or different test parameters on each station at the same time. You can start or stop any of the six tests without interfering with the others, which significantly increases laboratory efficiency compared to single-station units.

2. Why is a resolution of 0.001g necessary for this test?

Quick-dry fabrics often evaporate moisture in very small increments. To calculate an accurate "rate," the sensor must be sensitive enough to detect minute changes in mass over short intervals (e.g., 1 minute), which is impossible with standard 0.01g balances.

3. What environmental factors can affect the test results?

Evaporation is highly sensitive to ambient temperature and humidity. For standardized results, you should operate the tester in a climate-controlled room. Even minor fluctuations in air speed can alter the drying rate.
