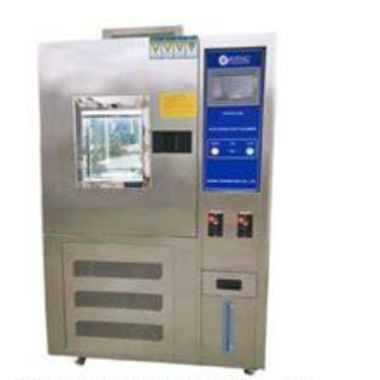

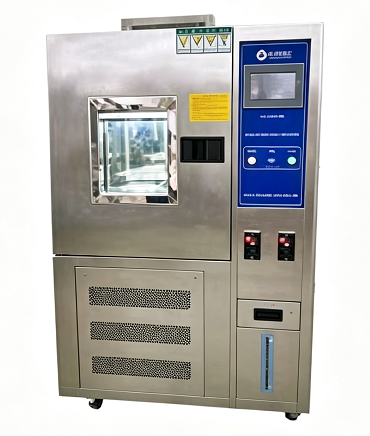

Ozone Test Chamber STD-AC22


Ozone Test Chamber STD-AC22 is a testing device used to evaluate the ozone aging resistance and cracking performance of rubber and polymer materials under controlled ozone concentration and temperature conditions.

Features

Whole chamber inside and gripers made up of stainless steel, anti-corrosion.

Outside of the chamber is baking finish (can choose SUS 304 stainless steel)

Whole machine equipped with a safety protection system, the end of the test automatically stops

Use low-noise, multi-wing centrifugal fan to supply air circulation to avoid any dead angle, which can evenly distribute temperature and humidity and ozone in the test area.

The test door and body are sealed with double layer ozone resistant high tensile silica gel to ensure the sealing of the test area

With a transparent window, chamber inner with a lamp, used to observe changes of samples.

Test space option

Capacity

Inside Dimension (W×H×D, cm)

Outside Dimension (W×H×D, cm)

80L

40×50×40

95×136×94

150L

50×60×50

100×146×104

225L

50×75×60

100×161×117

408L

60×85×80

110×171×137

800L

100×100×80

150×186×137

1000L

100×100×100

150×186×157

Key Specification

Model

STD-AC22 Ozone Test Chamber

Ozone concentration

0～1000 PPHM

Ozone concentration deviation

≤10％

Chamber temperature

0～80℃, can be set

Chamber humidity

20%~98%, can be set

Specimen frame rotation velocity

0～50mm/s

Chamber gas-flow rate

8-16mm/s

Material of inner surface

SUS304 mirror finished stainless steel

Material of outside surface

baking finish surface or SUS304 stainless steel, option

FAQs

1. What is an Ozone Test Chamber STD-AC22?

It is used to evaluate the ozone resistance and aging performance of rubber and polymer materials under controlled ozone exposure.

2. What materials can be tested?

It is suitable for testing rubber products, rubber seals, hoses, cables, and other ozone-sensitive materials.

3. What does the test measure?

The test evaluates ozone-induced cracking, surface damage, and other signs of material deterioration.

4. Which standards does it comply with?

The applicable standards depend on the specific test method and equipment configuration. Confirm the required standard before testing.

5. Why is ozone resistance testing important?

It helps assess material durability, supports product development, and improves quality control for rubber and polymer products.
