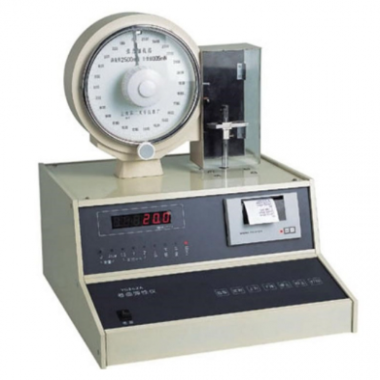

Fiber Crimp Elasticity Tester STD-AR13


PRODUCT DETAIL

STD-AR13-Fiber Crimp Elasticity Tester

Application Of Fiber Crimp Elasticity Tester

Fiber Crimp Elasticity Tester uses a SCM control to make the curling elasticmeter intelligentization. It is loaded by a

tension loader, and the length of the displacement is counted by the pulse signal sent from the stepper motor through

the single-chip microcomputer. The instrument automatically measures, displays, and prints the crimp,crimp recovery,and their statistical values for fiber deniers of 1--22 dtex.

Key Specification

ModelSTD-AR13 Fiber Crimp Elasticity Tester
Tension loader loading rangeLoading range (mN)Score value (mN)Estimated reading (mN)
0--5.000.010.005
0--10.000.020.01
0--25.000.050.02
Initial length20mm
Lower holder stroke≥30mm
Displacement min.indication0.01mm
Displacement reading error≤0.05mm (in the range of 10mm)
Timing step0.5.1.2min
Power supplyAC220V, 50/60 HZ
Dimension46x23x46cm
