Standards

ASTM D1422/1423.BS 2085.DIN 53832.ISO 2061.IWTO 25-70.GB/T 2543.1-2001/2543.2-2001

Application

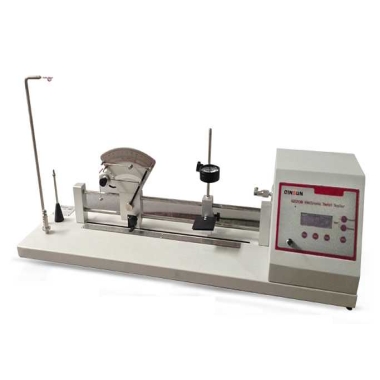

Twist Tester, is used to get the coefficient of twist, which is a measurement of the level of twist of the yarn, suitable for testing single or plied yarns, equipped with auto stop & reverse for conventional or untwist/re-twist methods, makes yarn twist testing an easy task for textile testing labs or factories.

Twist tester offers adjustable test length up to 500mm/20 inches for S & Z twist yarns, and inching function helps the operator to get an esteemed twist quickly. Test result in TPI / TPM is directly displayed on the touch screen.

Information

The electric yarn twist tester can be used to determine yarn twist in single yarn or ply yarns, it is a kind of quadrant type tester with auto stop & reverse for conventional or untwist/re-twist methods. Test length adjustable up to 50cm/20 inches for S & Z twist yarns.

The weight of electronic Twist Tester: 16kg(36lb)

Outside dimensions of electronic Twist Tester: 1070×300×290mm(L×W×H)

Parameter
