A plunger of 25.4 mm (1 in) diameter pushes the fabric through a 38 mm (1.5 in) diameter orifice for a distance of 57 mm (2.25 in) in 1.7 seconds, and the maximum force is recorded.

Standards:

ASTM D4032

Application:

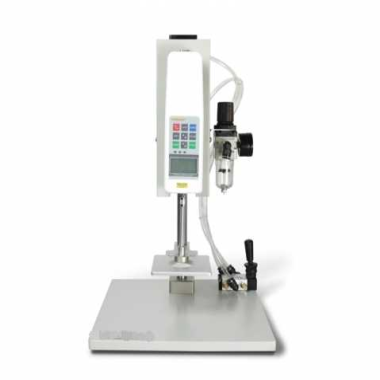

Fabric Stiffness Tester Pneumatic, used for testing the stiffness of fabric by the bending cycle test method of ASTM.

Test Procedure:

A plunger of 25.4mm (1 in) diameter pushes the fabric through a 38mm (1.5 in) diameter orifice for a distance of 57mm (2.25 in) in 1.7 seconds and the maximum force is recorded.

Specifications:

Provided with pneumatic cylinder

Digital force gauge: 50 kgf, 500N or 100lb (switchable) with peak-hold facility.

Lab compressed air is required.

Product parameters:

Weight:18 kg

Power:0.4-0.7 Mpa

Width:500 mm

Depth:500 mm

Height:600 mm
