Standard

GB/T 30128-2013: Textiles – Test and Evaluation of Negative Ion Generation

Application

Functional Textile R&D: Assesses air-purifying, health-enhancing, and antimicrobial fabrics.

Quality Control: Verifies compliance with negative-ion standards for medical textiles, bedding, and apparel.

Certification Laboratories: Provides data for GB/T 30128-2013 certification.

Product Advantages

Precision Ion Detection: Capacitive suction method captures ions with mobility >0.15 cm²/(V·s).

Multi-Range Measurement: Three ranges (0–20.000; 0–200.000; 0–2.000.000 units/cm³) adapt to diverse materials.

Automated Friction System: PLC-controlled discs (93 ±1 r/min) simulate real-world wear.

Standard Compliance: Meets GB/T 30128-2013 for reliable certification.

Sample Versatility: Tests coated/uncoated fabrics, knits, and nonwovens with adjustable pressure (7.5 ±0.2 N).

Real-Time Data: Generates ion concentration curves over time for dynamic analysis.

Product Features

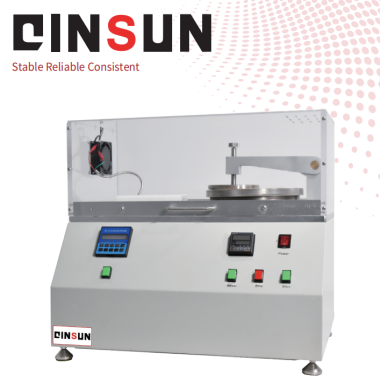

Dual Friction Disc Design:

Upper Static Disc: Diameter 100 ±0.5 mm (fixed).

Lower Dynamic Disc: Diameter 200 ±0.5 mm (rotating at 93 r/min).

Capacitive Ion Sensor: High-sensitivity detection of activated negative ions.

Adjustable Parameters

Friction speed (93 ±1 r/min).

Applied pressure (7.5 ±0.2 N).

Sample Fixation: Clamping devices secure samples to discs, ensuring full coverage. Gaskets prevent slippage (coated fabrics rub coated surfaces).

Enclosed Test Chamber: (300 × 560 × 210 mm) minimizes external interference.

Automated Control: PLC-driven system with touchscreen operation.
