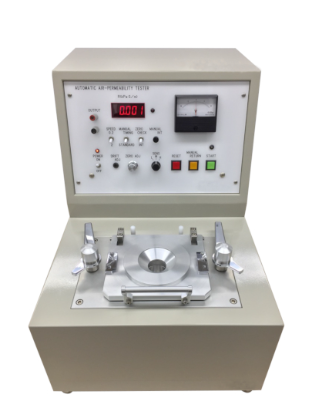

Air Permeability Tester STD-F8


The Air Permeability Tester is a high-precision instrument designed to measure the breathability of materials, ranging from highly permeable gauze to waterproof breathable fabrics. It provides fast, accurate results using a digital display to eliminate manual reading errors. With a pressure measurement resolution of 2 Pa, this instrument ensures high-precision data, making it ideal for textiles, building materials, hygiene products, and related industries.

Application

The Air Permeability Tester can evaluate a wide range of materials, including:

Textiles: gauze, stockings, socks, underwear, cotton, and other fibers.

Hygiene products: adult diapers, sanitary napkins, and medical nonwovens.

Building materials: insulation materials, breathable membranes.

Cosmetic packaging materials.

Waterproof breathable fabrics.

Standards

This instrument complies with multiple international and national standards for air permeability testing:

(1) GB/T 5453-2010 – Determination of air permeability of textiles

(2) ASTM D737 – Air permeability of textile fabrics

(3) ISO 9237 – Textiles – Determination of permeability of fabrics to air

(4) JIS L 1096-1999 – General methods for textile testing

(5) DIN 53887 – Testing of textile air permeability

(6) AFNOR G07-111 – Textile air permeability

(7) Additional references: ISO 9237. GB/T 5453. ASTM D737

Parameters

ParameterSpecification
Dimensions / WeightW330 × D495 × H430 mm / 25 kg
Power SupplyAC 100 V, max 40 W
Operating Environment20–30°C, 50–70% RH, avoid condensation
Testing MethodConstant air flow with permeability resistance measurement
Pressure SensorSemiconductor differential pressure transducer
Measurement Accuracy±0.5% full scale (air permeability resistance)
Measurement UnitsAir permeability resistance (R) in kPa·s/m
Maximum Resistance (R)25 kPa·s/m (standard test)
Pressure Sensitivity2000 Pa (standard), 200 Pa (high sensitivity)
Piston Speed2 cm/s (standard), 0.2 cm/s (high sensitivity)
Airflow Rate4 cc/cm²/s (2 cm/s), 0.4 cc/cm²/s (0.2 cm/s)
Test Plate Area2π cm²
Sample Size50 × 50 mm to 100 × 100 mm
Sample Thickness≤1 mm

Features

(1) Fast and convenient: Easy sample installation using a handle; testing completed in seconds.

(2) High precision: Semiconductor differential pressure sensor ensures accurate, repeatable results.

(3) Digital display: Data is shown directly on the digital screen, avoiding manual reading errors.

(4) Flexible adaptation: Adjustable pressure and piston speed with high-sensitivity options for different material types.

(5) Wide applicability: Suitable for textiles, hygiene products, building materials, and other industry applications.

Accessories

(1) Air permeability test plate: 2π cm² standard test plate

(2) Pressure sensor: Semiconductor differential pressure transducer

(3) Sample holder: Supports 50 × 50 mm to 100 × 100 mm samples

(4) Power adapter: AC 100 V
