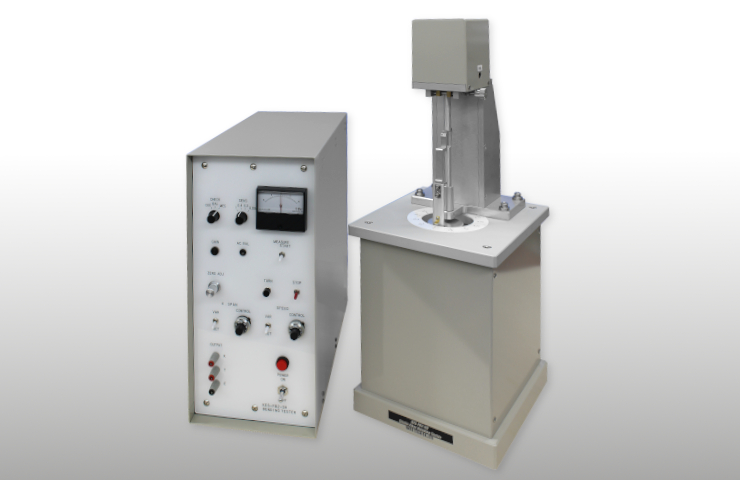

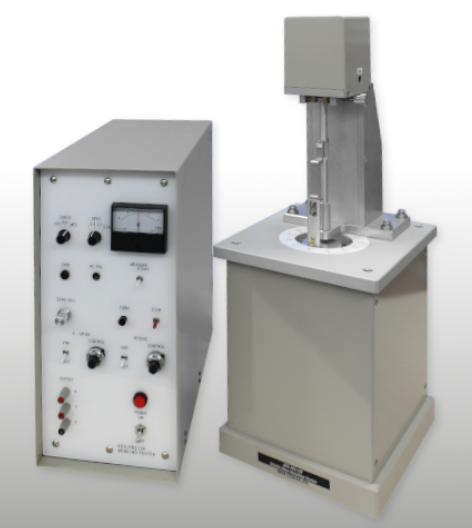

Single Fiber Bending Tester STD-FB2-SH
The Single Fiber Bending Tester makes it possible to easily measure and quantify softness, elasticity, and diffusion differences in a single strand of yarn or hair. Elasticity and diffusion differences can be quantified by measuring the hardness and recoverability when bending the target. With the STD-FB2-SH, measurements can be performed easily for a single strand, eliminating effort spent creating multiple samples.
ASTM A370. ASTM A416. ISO6934.4
Features
Capture minute area moments as felt by a fingertip thanks to the device' s wire torsion torque detection method. Quantify data correlating to sensory evaluations with high reproducibility.
Successfully eliminate user-caused measurement errors thanks to a simple measurement operation.
Specification
| Product Name | Single Fiber Bending Tester |
| Dimensions (W × D × H) approx. | Measuring unit: 210 × 240 × 580 mm Amplifier: 180 × 400 × 400 mm |
| Weight approx. | Measuring unit: 30 kg Amplifier: 10 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | STD-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | Diameter: ⌀0.07 mm/⌀0.1 mm/⌀0.12 mm (max.) Three types of chucks are available as the standard accessories. Length: 20 mm (min.) |
FAQ
1. What is a Single-Strand Bending Tester STD-FB2-SH used for?
The Single-Strand Bending Tester STD-FB2-SH is used to evaluate the bending performance, flexibility, and mechanical properties of single yarns, fibers, wires, or similar strand materials under controlled test conditions.
2. Which standards can the Single-Strand Bending Tester STD-FB2-SH comply with?
The tester can be designed to meet relevant international testing standards depending on the application requirements, including textile, fiber, and material bending performance evaluation standards.
3. What parameters can be measured by the Single-Strand Bending Tester?
The equipment can measure bending force, bending stiffness, deformation behavior, and other mechanical performance indicators of single-strand samples.
4. What types of materials can be tested with the STD-FB2-SH tester?
The tester is suitable for testing various single-strand materials, including textile yarns, fibers, filaments, thin wires, and other flexible strand materials.
5. How can the accuracy and stability of the Single-Strand Bending Tester be maintained?
Regular calibration, proper sample preparation, routine maintenance, and following the recommended operating procedures help ensure accurate and stable test results.
