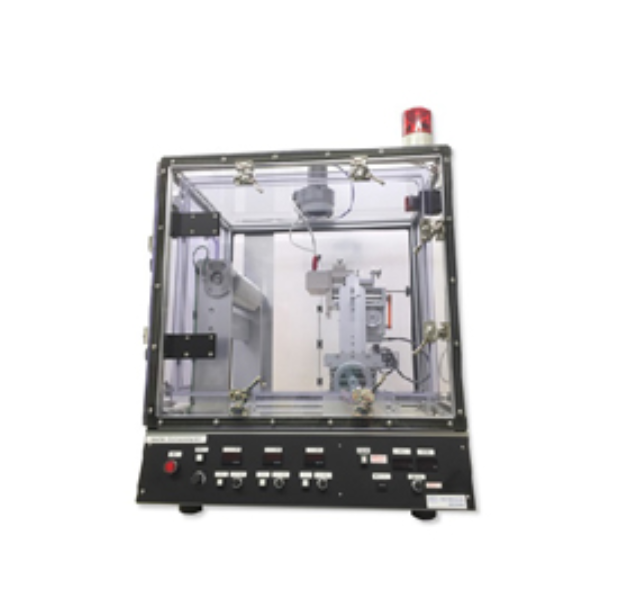

Nanofiber Electrospinning Device


The Nanofiber Electrospinning Device is designed to fabricate nanofibers with diameters ranging from 50 to 800 nm using electrospinning technology. It enables rapid production of high-uniformity fibers from small amounts of polymer. The unit is widely used in research and development of filters, fuel cells, nanofilms, composite materials, biomedical scaffolds, and other nanotechnology applications.

Application

Materials Science: nanofiber membranes, composite material reinforcement

Filtration and Separation: air filters, high-performance liquid separation membranes

Energy Technology: fuel cells, dye-sensitized solar cells, battery separators

Biomedicine: artificial skin, artificial leather, cell culture scaffolds

Electronics and Optoelectronics: nanowires for IC chips, organic EL films

Catalysis and Functional Materials: nanocatalyst carriers, ion exchange membranes

Fibers and Textiles: high hand-feel fibers and films

Research & Development: nanofiber structure studies, nanofilm fabrication, fiber surface area enhancement

Standard

T/YNIA 017-2023 "Electrospun Nonwoven Air Filter Materials"

Technical Parameters

ParameterSpecification
Dimensions / WeightW900 × D750 × H1080 mm / approx. 120 kg
Power SupplyAC100V, max. 80 W (must be grounded)
Operating EnvironmentTemperature 10–40°C, humidity 30–70% RH, non-condensing
DC High-Voltage Power Supply0–39 kV digital display, leakage current Max. 500 μA
Exhaust FanMulti-blade (scirocco) fan
Injection Pump CapacityStandard 20 ml, up to 3 pumps
Injection Speed0.000–0.500 mm/min (stable range 0.030–0.250 mm/min)
Injection Movement Speed0–300 mm/min
Injection Target Range0–200 mm (standard)
Injection DistanceHorizontal 45°, vertical adjustable up to 150 mm
Drum SizeDiameter 100 mm, width 330 mm
Drum Circumferential Speed0–9.00 m/min
Safety MeasuresSpark limiter (stops above 500 μA), valve interlock

Features

Controlled Fiber Diameter: produces fibers from 50 to 800 nm with high uniformity and reproducibility

Multi-Polymer Compatibility: small polymer quantities can produce nanofibers rapidly

High Safety Design: spark limiter and valve interlock ensure safe high-voltage operation

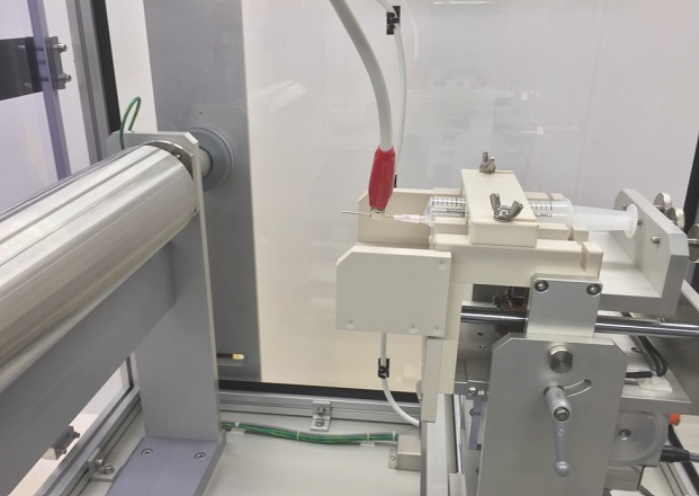

Controllable Injection System: adjustable pump speed, movement speed, and injection distance

Drum Collection Device: enables continuous winding or batch collection

Broad Application Scope: suitable for automotive, energy, electronics, biomedical, catalysis, and textile research
