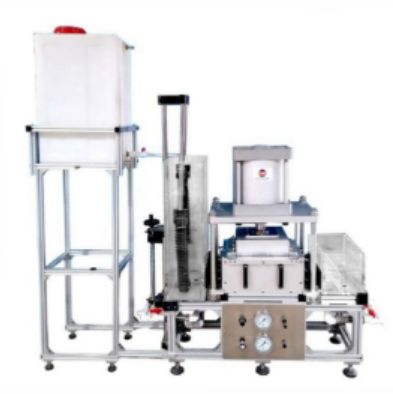

The geosynthetic material horizontal permeability tester simulates water flow conditions in actual engineering projects to measure the material's horizontal permeability coefficient and hydraulic conductivity, thus evaluating its drainage performance.

Application

Used to determine the horizontal permeability of geosynthetics under constant head flow conditions. Under the conditions of hydraulic gradient and contact material, the normal pressure is changed to measure the water flow in the plane of geotextile and its related products.

Standards

GB/T17633-2019: Geotextiles and geotextile-related products - Determination of water flow capacity in their plane

ISO/FDIS 12958-1998: Geotextiles and geotextile-related products - Determination of water flow capacity in their plane

ASTM D4716-2007: Standard Test Method for Determining the (In-plane) Flow Rate per Unit Width and Hydraulic Transmissivity of a Geosynthetic Using a Constant Head

SL/T 235-9-2012: Test Method for [Specific Property] of Geosynthetics

ISO 11058: Geotextiles and geotextile-related products - Determination of water permeability characteristics normal to the plane, without load

Features

The whole machine is made of acrylic and aluminum profiles, simple and beautiful, not easy to rust;

The instrument is compact in structure and convenient in installation.

The waterway design is reasonable and the operation is simple;

With water tank, high environmental adaptability;

Pressure loading is adopted to apply constant normal pressure to the sample, which is safe and reliable.

Double overflow water level adjustment system, can achieve a wide range of water head difference continuous adjustment:

High precision pressure gauge front mounted, easy and reliable reading;

The instrument is equipped with a variety of specifications closed cell rubber, suitable for different specifications of samples;

The instrument has stable performance and good reproducibility.

Parameters

Accessoriess

Sample holder

Water level measuring cylinder

Time controller

Thermometer

Base and container

Control piping system

Power supply and control circuit
