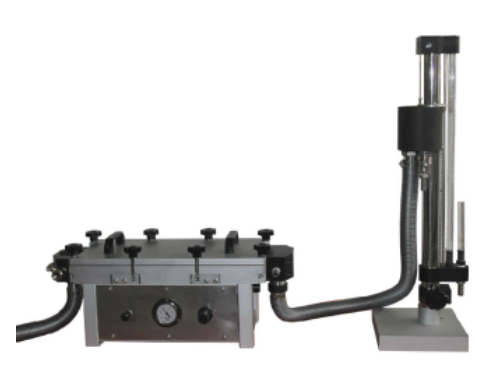

Plastic Drainage Board Horizontal Water Flow Tester


The Plastic Drainage Board Horizontal Water Flow Tester is used to determine the characteristics of water flow along the plane of a plastic drainage board under specified pressure conditions. During testing, seepage occurs while maintaining a lateral pressure of 350 kPa and a hydraulic gradient of i = 0.5. The water volume passing through the specimen over a specified period is measured.

Standards

(1)JTG E50 T1143-2006

(2)SL/T 235-26-2012

(3)JT/T 521 Appendix A-2004

(4)JTS-206-1 Appendix B B.3-2009

(5)JTS/T245-2023

Application

The Plastic Drainage Board Horizontal Water Flow Tester is used to evaluate the water flow characteristics of plastic drainage boards under specified lateral pressure and hydraulic gradient conditions. It measures the amount of water that passes through the board over a set period, helping manufacturers and engineers assess drainage efficiency, product quality, and performance in civil engineering and construction applications.

Features

Custom pressure gauge using imported high-precision diffused silicon pressure sensor and 16-bit high-resolution A/D converter.

High-energy lithium sub-battery provides power to the pressure gauge with continuous usage exceeding 1.5 years.

One-key zero calibration of the pressure gauge, suitable for multiple environmental conditions.

Six selectable units: kPa, MPa, Psi, mmHg, Bar, Kgf/cm².

Openable chamber design for easy specimen installation.

Cast aluminum integrated body ensures the sealing of the pressure chamber.

Specially designed specimen clamping device prevents deformation of the plastic core board, combined with sealing rings to ensure no air or water leakage at the clamping points.

Hydraulic gradient adjustable via water tower height.

Optimized water pipeline design reduces head loss during testing for more accurate results.

Pneumatic control components manage compressed air flow and pressure, providing lateral pressure for testing.

Pressure chamber and sealing plates can be customized to accommodate different specimen sizes.

Technical Parameters

ParameterSpecification
Test chamber structureOpenable
Effective specimen length400 mm
Specimen width100 mm (customizable)
Lateral pressure350 ± 20 kPa (pressure gauge accuracy: 0.4% FS)
Hydraulic head adjustment range0–400 mm
Accuracy0.4%
DimensionsMain unit: 715 × 300 × 260 mm; Water tower: 440 × 440 × 860 mm
Weight35 kg

Accessoriess

(1)Main unit – 1

(2)Plastic water pipes – 4

(3)Air pipe – 1

(4)Latex membranes – 3

(5)Sealing plates – 2

(6)O-rings – 3

(7)Clamps – 2

(8)Base feet – 4

(9)Packing list – 1

(10)User manual – 1

(11)Certificate of conformity – 1
