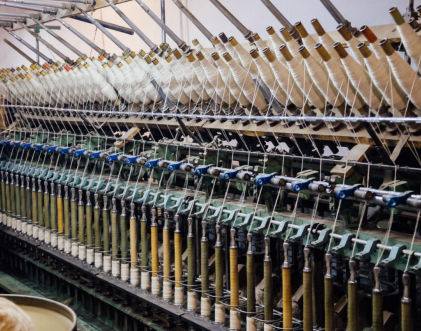

Jute Spinning Frame G-JS160


The jute spinning frame is the core yarn-forming equipment in a jute textile production line. It is used to further stretch and twist the jute fiber slivers after carding and drawing, and finally spin them into jute yarn.

Parameters

Item

Specification

Hand of drive

Both R.H. & L.H.

Type of Frame

apron Draft

Flyer type

Boxter.

No. of Yarn

8 - 28 lbs/spy

No. of spindles per frame

24

Traverse & Diameter of bobbin

71/2'' X 31/2''

Dead spindle Diameter

3/4'' (ball spring loaded)

Diameter of bobbin carrier tube

7/8

Diameter of bottom roller

21/4'',

Diameter of retaining roller

21/4'',

Flutes per inch on retaining roller

20

Diameter & face of pressing roller

61/8'' x 5/8''

Draft range

upto-20

Twist range

upto-10

Diameter of Cylinder

57/8''

Diameter & type of wharves

2'' Special

Width of tape

1

Range of flyer speed

3400-4000 rpm

Individual motor drive tape and revolution of the same

15 HP, 1440 rpm & Starter
Suitable for 400/440 volts. 3 phase, 50 HZ Power.

Position of motor

Inside Framework

Warranty

One year warranty
