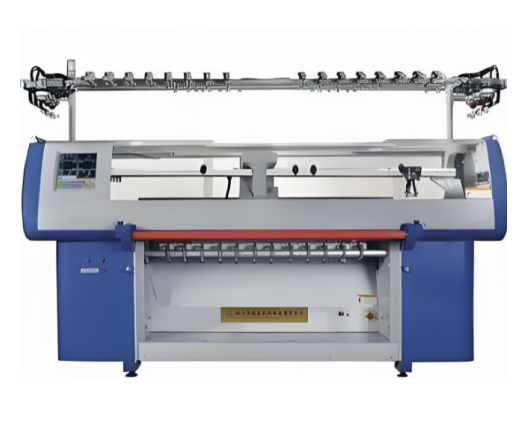

Computerized Flat Knitting Machine G-CF450


A computerized flat knitting machine is a knitting device that uses a computer control system to drive the needle beds for automatic knitting. It can execute complex patterns, structural knitting, and high-precision shaped knitting according to pre-programmed instructions. The machine is characterized by a high degree of automation, high production efficiency, flexible pattern design, and good product consistency, making it an important piece of equipment in the modern knitting industry.

Application

(1) Garment industry: Used for producing sweaters, knitted garments, scarves, hats, and other apparel products.

(2) Home textile products: Used for blankets, cushion covers, and decorative knitted items.

(3) Sports and functional clothing: Used for sportswear, thermal underwear, and functional knitted fabrics.

(4) Industrial knitted products: Used for technical textiles and composite knitted structures.

(5) Fashion and design field: Used for high-end customized knitted products and creative sample development.

Parameters

Parameter

Specification

Type Details

SV 5/7 Gauge

Knitting Width

Variable Stroke, Max 45" (114 cm)

Gauge

Multigauge / Widegauge

Knitting Speed

Max 1.2 m/sec

Stitch Density

120 Levels

Racking

1 inch both sides

Transfer

Simultaneous transfer, front/back any cam direction

Sinker

Spring type movable sinker

Setup Device

Take-down comb with special setup needle

Yarn Cutter

Single unit, 1 cutter, 2 gripper

Control System

DSCS (Digital Stitch Control System)

Yarn Carriers

6 positions

Controller

Built-in

Data Input

USB Memory

Power Supply

Single Phase AC 220–230 V, 1.6 kW

Weight

660 kg

Must be Compatible with external design system like SDS-One-Apex 4 Design system etc.

Warranty

One year warranty
