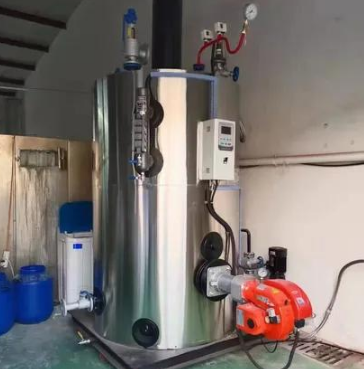

Boiler G-BL207


Boiler is an industrial heating system designed to generate steam or hot water for various production processes. It provides efficient thermal energy by converting fuel into heat, ensuring stable and continuous operation. Widely used in textile, chemical, and manufacturing industries, it offers reliable performance, high efficiency, and safe operation.

Features

Packaged vertical water tube 2/3 pass Boiler

Fully automatic control, Boiler grade steel and tube

Complete package burner for on/off operation

Specification

Boiler Capacity

0.5 ton, or Electrical 48 kg/hr (F&A 100°C)

Type

Water Tube, Vertical, Top Fired, 2-pass

Power Supply

230V / 1Ph / 50Hz / AC; Electric 415V 3P / 220V / 50Hz / AC

Heating Surface

1.43 m²

Water Volume (at NWL)

Approx. 17 liters

Volumetric Capacity

Approx. 22 liters

Blow Down Outlet

25 mm dia

Main Steam Outlet

20 mm dia

Feed Water Inlet

15 mm dia

Chimney Outlet

100 mm dia

Power Consumption

Burner motor: 0.37 kW (220V, 1Ph, 50Hz AC)

Feed Water Pump

0.75 kW (220V, 1Ph, 50Hz AC)

With insulation pipe and steam connection with dyeing machine.

All dyeing machine need high temp will be connected with boiler steam line with individual control.

Safety

Over pressure, low water level, no air flow to burner and power failure.

Suitable for working at high pressure. Thermal efficiency 89% and fuel to steam efficiency 85% based on net calorific value of the fuel.

Warranty

One year warranty
