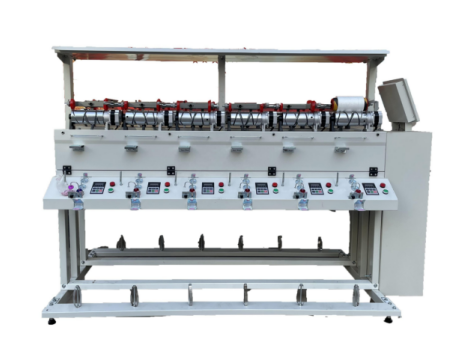

Pirn Winding Machine G-PW205


Pirn Winding Machine is designed for winding yarn onto pirns used in shuttle weaving looms. It ensures uniform winding tension, smooth yarn layering, and precise package formation for stable weft insertion during weaving. With reliable performance and easy operation, it is widely used in textile mills for efficient yarn preparation and consistent weaving quality.

Technical Specification

Type

Single / Double-side

Number of Spindles

12

Spindle Gauge

70 mm

Spindle Speed

2000–3000 r/min (Adjustable)

Max. Winding Diameter

32 mm

Max. Winding Height

205 mm

Power Supply

AC 380V / 50Hz, Three-phase

Motor Power

1 HP / 2.2 kW

Warranty

One year warranty
