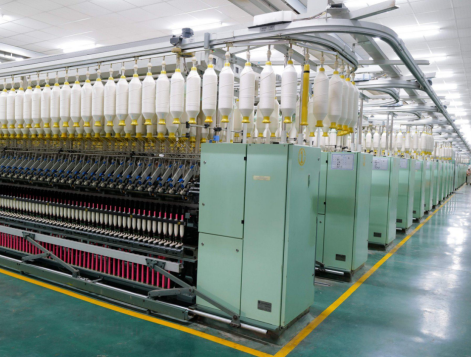

Ring Frame G-RF070


The ring frame is the core yarn-forming equipment in the spinning process of the textile industry. It is used to further draft, twist and wind roving into yarn, and finally produce finished yarn that can be used for weaving, knitting and other purposes.

Parameters

Item

Specification

Spindle Gauge

70 mm.

Spindle No

96

Spindle type - spring type

Standard spindle with knee braking system Ring diameter: 38mm, 42mm, 45mm (12 spindles for each ring diameter) Flange 3.2 mm

Tube length

200 mm

Spun yarn count

6~100 Ne

Draft Ratio

Total draft 10 ~ 50 times, Rear Zone Draft 1.6 ~ 1.53 times

Draft range

8-80

Twist range

300~1600T/M

Spindle speed range

12000 ~ 20000 rpm

Twist

Z or S

Suitable fiber

Cotton, Cotton type chemical fiber and medium synthetic fiber up to 65mm or their blends.

Pressure arm

Spring loaded drafting arrangement with 3 rows of rollers with cradle for short and medium staple fibers.

Roving bobbin diameter

180 mm and lift 205mm creel of 6 rows (single) with roving holder peg, break & roving guide bar

Operating system

PLC with latest configuration.

Ring cup, Drafting bottom roller, Spindle and Traveler

must be rust proof.

Accessories for Ring Spinning Machine

Projects

Quantity

Essential spare parts and catalogue book

——

No. of Ring bobbin

200

No. of Simplex bobbin

 200

Draft changeable gears

(Step-2) 8-50

Break draft changeable gears

1.16-2.0 (Step 0.05)

Twist changeable gears

300-1600 T/M

Ring Traveler

For 16s, 20s, 26s, 30s, 40s, 50s, 60s, 80s,
( For each size minimum 1 packet required, 1000pcs/ packet)

Catalogue & operation manual

——

Warranty

One year warranty
