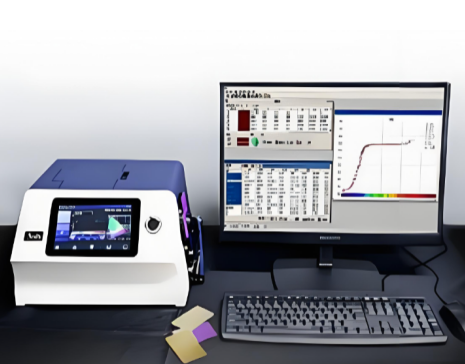

Computerized Color Matching System G-CC420


In a competitive marketplace, there is increasing pressure to improve color quality in the lab and in manufacturing to reduce rework due to errors and to deliver a faster time to market. This is an affordable bench top spectrophotometer for small to medium-sized manufacturers who are aspiring to implement a higher degree of color formulation and quality control in their product development and production processes. Combine with color iqc or color I match software; to support; an evolving color program.

Application

(1) Textile Industry: Dye formulation, shade matching, and batch color consistency control.

(2) Paint & Coatings Industry: Accurate color development and production color management.

(3) Plastic Industry: Pigment formulation and color quality control for plastic products.

(4) Printing & Packaging: Ink color matching and print color consistency verification.

(5) Leather & Footwear Industry: Color matching and quality assurance for leather and synthetic materials.

(6) Research & Laboratories: Color analysis, formulation optimization, and material development.

Specifications

Parameter

Specification

Short Term Repeatability (White)

≤ 0.05 ΔE*ab on White Ceramic

Measurement Geometry

d/8°

Inter-Instrument Agreement

Average 0.20 ΔE*ab

Illumination Spot Size

8 mm Measurement Area, 14 mm Target Window

Lamp Life

Approx. 500.000 Measurements

Light Source

Gas-Filled Tungsten Lamp + UV LEDs

Measurement Cycle Time

≈ 2 Seconds

Measurement Spot

8 mm

Measurement Time

≈ 2 Seconds

Photometric Range

0–200%

Photometric Resolution

0.01%

Spectral Analyzer

Blue-Enhanced Silicon Photodiodes

Spectral Interval

10 nm Measured and 10 nm Output

Spectral Range

400–700 nm

Accessories

Following Standard Accessories Will Be Supplied:

(1) Desktop Computer -1 Pcs (Latest)

(2) 19'' Monitor-1 Pcs

(3) Inkjet Color Printer: 1 Pcs

(4) USB Mouse & Key Board: 1 Pcs

(5) Mouse Pad-1 Pcs

(6) A4 Paper- 1 Box

(7) UV Filter

(8) Iqc Software

Warranty

One year warranty
