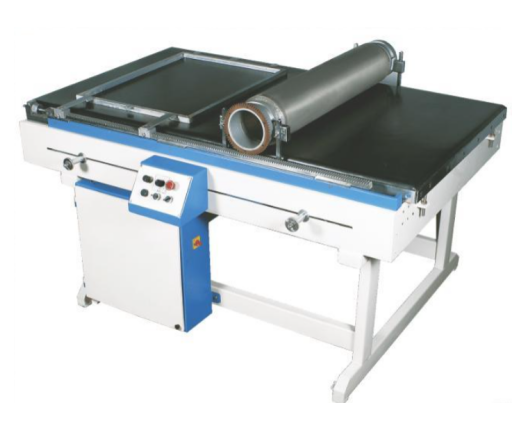

Sample Printing Machine G-SP308


A sample printing machine is a specialized unit used for prototyping, testing, and small-batch production. These systems—ranging from desktop inkjet coaters to industrial pad and screen printers—allow manufacturers to test print quality, ink adhesion, and designs on actual substrates before committing to large-scale, mass-production runs.

Application

(1) Scrape pulp to run experimental procedure for the operation of inspection equipment.

(2) Imported tablecloth fabric with good elasticity, effect of uniform. Scrape with electromagnets to attract scrape pulp slurry roll a rolling basis.

(3) Magnetic bar scraping force can be free to adjust the slurry, digital display. Scrape pulp free to adjust the speed by frequency conversion, digital display.

(4) Can choose a single scrape pulp, scrape pulp cycle approach.

Specification

Parameter

Specification

Scrape Pulp Itinerary

Freely Adjustable

Drive System

Direct Motor Ball Screws, Linear Bearings

Additional Features

With Drainage Channels, Tools, and Chromatic Matching Positioning Device

Standard Magnetic Bar Quantity

1 pc

Standard Magnetic Bar Diameter

20 mm

Magnetic Bar Length

500 mm

Optional Magnetic Bar Sizes

10 mm, 15 mm, 20 mm, 25 mm

Magnetic Bar Stroke

500 mm

Standard Fence Quantity

1 pc

Standard Fence Size

640 × 480 mm

Maximum Fence Size

650 × 650 mm

Printing Area

500 × 400 mm

Travel Space

200–500 mm, Stepless Adjustable

Printing Speed

0.6–6 m/min, Adjustable

Power Supply

220 V, 50 Hz

Warranty

One year warranty
