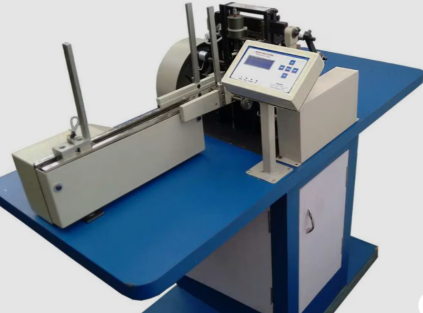

Card Punching Machine G-CP202


Card Punching Machine is designed for accurately punching pattern cards used in Jacquard weaving systems. It ensures precise hole placement according to design specifications, enabling smooth and reliable fabric pattern production. With stable performance and easy operation, it is widely used in textile workshops and jacquard card preparation processes.

Technical Specification

Impulse Diameter

Ø 4.5 mm

Impulse Vertical Hole Distance

3 mm

Impulse Horizontal Hole Distance

12 mm

Punching / Re-perforating Location Hole Distance

347 mm (28 harnesses), 275 mm (20 harnesses)

First Fit Distance (Left Location Hole)

20.5 mm

Structure Type

Platform type, suitable for hard-turning operation; continuous line change during punching/re-perforation

Function

Can duplicate old figure paper (card) to new one, saving labor and time

Suitable Harnesses

≤ 28

Paper Thickness

0.22 – 0.25 mm

Warranty

One year warranty
