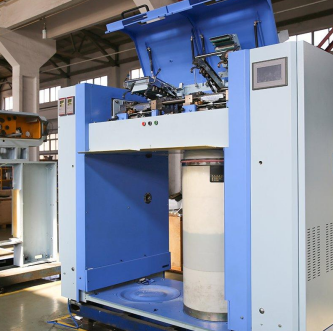

Drawing Machine (1st) G-DM140


The drawing machine (1ST) is an important piece of equipment in the spinning process. It is located after the carding machine and is used to combine, draft, and homogenize multiple carded slivers to improve the uniformity and stability of the fiber sliver.

Parameters

Item

Specification

Heads per frame

2/3/4/5

Silvers per head

4

Deliveries per head

2

Pitch of Silver

7.5

I Length of reach

14

Diameter of front roller

 2.5

Diameter of back roller

2.1/4

Diameter of pressing roller

MacDraw

Width of silver trap

2:

Width of silver at feed

5”

Width of gills

6

Doubling on Frame

 2:1

Draft / Range

3.7-4.5 or higher

Description of rubber at front & back

Revolving

Production in kg/hr


300 (approx)

Warranty

One year warranty
