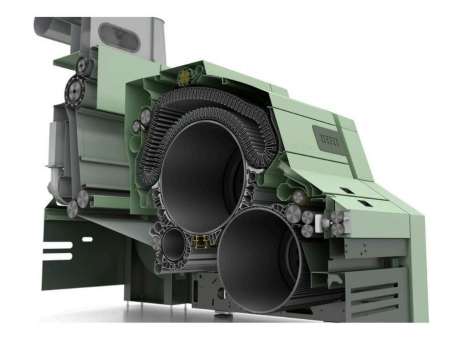

Breaker Card G-BC102


The BREAKER CARD is a key piece of equipment in the pre-spinning process of textiles. It is mainly used to further open, comb, and remove impurities from the raw materials after opening and blending, forming coarser fiber strips or fiber layers to prepare for subsequent combing or fine combing processes.

Parameters

Item

Specification

1. Type:

2/3 Pair Half Circular Down Striker

2. Uptake:

Positively driven Detachable

3. Feed:

By Spreader Rolls / By Hand

4. Taker-in:

Shell Feed with wear resistant Node nip

5. Delivery:

Roll Former

6. Working Width:

70 inches

7. Sliver Width:

5 inches

8. Delivery Rate:

240 - 300 ft./min.

9. Clock Length:

11.5 yds.

10. Draft Range:

11.3 - 21.7 (Hand feed) / 11.9-22.88 (Uptake Feed)

11. Main Motor:

12 Kw (15HP)

12. Card Clothing:

Wooden Staves / Metalag

13. Cylinder Speed:

225 rpm

14. Worker & Stripper:

2/3 Pairs

15. Worker / Stripper Drive:

Chain & Sprocket (MJB 01) / Gear - Pulley & Belt (MJB 02)

16. Cylinder Diameter:

48 inches

17. Doffer Diameter:

21.34 inches

18. Feeder Diameter:

10.6 inches

19. Worker Diameter:

10.6 inches

20. Stripper Diameter:

10.6 inches

21. Drawing Roller Diameter:

4 inches

22. Delivery Roller Diameter:

5 inches

23. Conveyor Rollers Bare Diameter:

4.5 inches

Warranty

One year warranty
