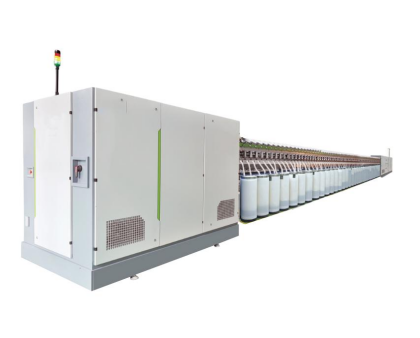

Rotor Spinning Frame G-RS080


A rotor spinning frame, also known as an open-end spinning machine, is a high-speed automated device used in the textile industry to directly spin fibers into yarn. It eliminates the need for the traditional roving process, directly producing yarn from slivers or opened fibers, and is a key representative of modern high-efficiency spinning technology.

Parameters

Item

Specification

1

With (24x2=48 rotor)

2

Standard Machine, consist of head- and tailstock, tube loader UNI feed, sleeplessly adjustable changing positions, 1 roboter

3

Spinning position with self-cleaning

4

Rotor Drive with 30 kW motor

5

Winding Roller drive with 5.5 kW motors

6

Feed drive with 5.5 kW motors

7

Cylinder Bobbins

8

Sliver guide 10 mm

9

Channel insert 31

10

Pressure roller with grey coats

11

Can height up to 1070 mm

12

Package length 125-155mm and edge shifting motion 0-30mm, sleeplessly variable stroke gear box, winding helix angle 30'-40' settable in 1' steps

13

Rotor without yarn end placement

14

Additional cleaning head

15

Yarn clearer with capacitive sensor

16

Exhaust air downwards into air ducts

Warranty

One year warranty
