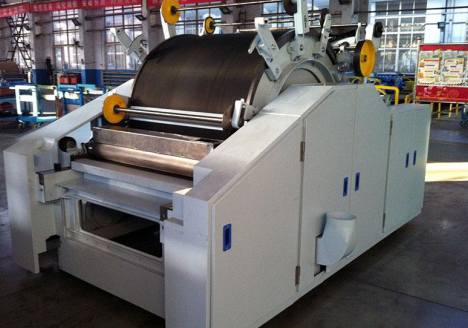

Carding Machine G-CM020


Carding machines are core equipment in the pre-spinning process of the textile industry. They are mainly used to comb, separate, remove impurities, uniformly mix and form webs (slivers) of cotton, chemical fibers and other fibers after opening and cleaning. They are important equipment connecting the opening and cleaning process with the drawing, roving and spinning processes.

Parameters

Item

Specification

Staple length

22-76 mm

Maximum production capacity

80 kg/ Hour

Sliver Weight

3.5-6.5 g/m

Weight of tuff web

400-1000 g/m

Inner Frame Width

1000 mm

Max delivery width

250/min

Licker in Dia

250 mm

Licker in Speed

808-1300 in Ten step

Doffer Dia

706 mm

Doffer speed

50-80

Cylinder Dia

1290 mm

Cylinder Speed (RPM)

330.360.420.450.500

Removing Flats (Working/ total)

32/86

Flat speed(mm/Min)

122-510

Can Size

600 X 1100 or 900 X 1100

Suction Air Volume Pressure

4500m3/ h-1000pa

Suction point

Eight under Card

Safety

full enclosed

Install power

6.57 KW

Warranty

One year warranty
