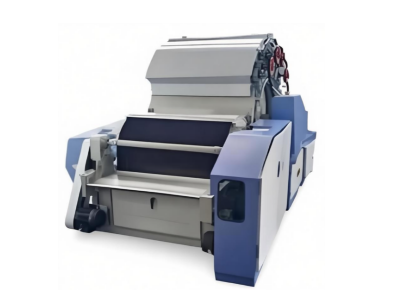

Saw Toothed Cleaner G-STC010D


The Jute Pre-Spinning Saw-Tooth Cleaning Machine, commonly known in the industry as the Saw-Tooth Jute Cleaner, is specifically designed for the pre-processing of raw jute prior to spinning. It is primarily used for opening compact jute fibers and removing jute sticks, sand, soil, and other hard impurities, making it one of the core machines in the jute fiber preparation process.

Parameters

Parameter

Specification

Production Capacity

≤800 kg/h, width 1.60 m

Spiked Roller Size

750 × 1594 mm

Speed

766 / 612 / 495 rpm

Speed Adjustment

Mechanical / Electrical

Frequency Control

Normally 400–800 rpm, generally 770 rpm

Dust Bar Type

68 pcs

Setting

5.5–11 mm

Setting Angle

50–300

Main Motor

7.5 kW, 1430 rpm

Carriage Motor

0.37 kW, 1430 rpm

Core Functions

(1) High-speed saw-tooth opening roller effectively tears apart compact jute bundles, opening compressed raw fibers for subsequent processing.

(2) Sixty-eight (68) dust removal and impurity extraction bars efficiently separate dust, jute shives, fiber debris, and hard contaminants, significantly improving fiber cleanliness.

(3) Variable-frequency speed control (VFD) provides uniform fiber feeding while minimizing fiber damage, ensuring stable processing performance.

(4) Improves fiber uniformity by producing evenly opened jute bundles, providing ideal pre-treatment for downstream softening and carding processes, thereby enhancing overall spinning quality.

Warranty

One-year warranty.
