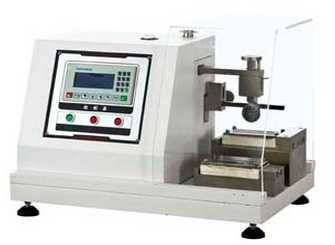

Gloves Cut Resistance Testing Machine


The Gloves Cut Resistance Testing Machine is designed for evaluating the cutting resistance of safety gloves, protective gloves, leather, and other soft materials. It is suitable for testing knife-resistance in safety gloves protection zones but is not suitable for extremely hard material gloves. The instrument provides accurate, repeatable, and standardized results for safety certification and quality control purposes.

Application

The machine is suitable for:

(1) Safety Gloves Industry: Testing cut resistance of industrial, construction, and protective gloves.

(2) Leather and Textile Products: Evaluating knife-resistance of leather, coated fabrics, and synthetic protective materials.

(3) Quality Control: Ensuring compliance of gloves and protective materials with international standards.

(4) Research and Development: Optimizing glove materials for cut-resistance performance.

Specific products tested include: industrial safety gloves, leather work gloves, anti-cut protective gloves, textile protective gloves, and composite safety materials.

Standards

The instrument complies with the following international and national standards:

(1) EN ISO 20344 – Personal protective equipment – Test methods for protective gloves

(2) GB/T 20991 – Safety gloves – Cut resistance test

(3) EN 388 – Protective gloves against mechanical risks

(4) EN 340 – General requirements for protective gloves

Features

(1) Rotating Circular Blade: Provides precise cutting action and uniform test results.

(2) Automatic Counting: Blade reciprocates under specified load with automatic cycle counting and test termination.

(3) Adjustable Load and Speed: Blade load and speed are controlled to meet testing standards.

(4) LCD Display Counter: Displays the number of cutting cycles accurately.

(5) High Precision Blade Material: Hard tungsten steel blade with 740–800 HV hardness ensures consistent cutting performance.

(6) Compact and Durable Design: Robust structure suitable for laboratory and industrial use.

Technical Parameters

ParameterSpecification
Number of Test Samples1 group
Horizontal Movement Displacement50 mm
Blade Rotation DirectionOpposite to motion direction
Blade Cutting SpeedMaximum 10 cm/s
Load on Blade5 ± 0.05 N
Round Blade SizeDiameter: 45 ± 0.5 mm, Thickness: 3 ± 0.3 mm
Total Cutting Angle30° – 35°
Blade MaterialTungsten steel, hardness 740–800 HV
Dimensions (L × W × H)550 × 400 × 250 mm
CounterLCD display, 0 ~ 99,999,999
Weight57.5 kg
Power SupplyAC 220 V, 50 Hz

Accessories

(1) Main testing unit – 1 set

(2) Blade set – 2 pcs

(3) Sample fixture – 1 set

(4) Power cable – 1 pcs

(5) User manual – 1 set

(6) Certificate of Quality – 1 set
