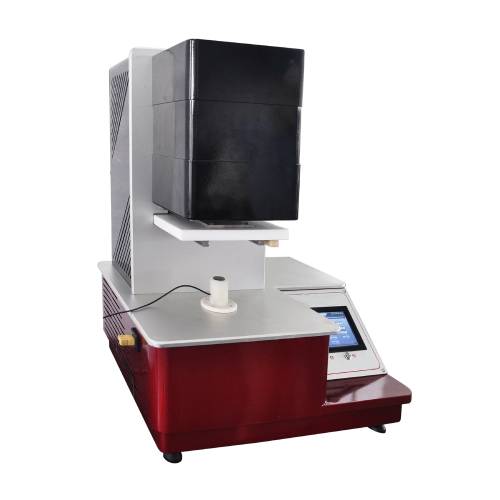

Glove Thermal Insulation Tester


The Glove Thermal Insulation Tester is a precision instrument designed to evaluate the thermal insulation performance of glove materials when exposed to high temperatures. By measuring the temperature rise on the glove surface during controlled contact with a heated brass cylinder, the system provides accurate, repeatable data to assess the protective capabilities of heat-resistant gloves in compliance with international standards.

Application

The tester is primarily used in the following scenarios:

Evaluating thermal resistance of household and industrial gloves

Assessing materials used in automotive, kitchen, and industrial safety gloves

Supporting R&D and quality control departments for heat-protective materials

Ensuring compliance with manufacturing specifications and safety regulations

Standards

The tester complies with and supports testing according to:

BS 6526:2002 – Household Oven Gloves Specification and Test Methods

ISO 12127 – Protective Gloves for Thermal Hazards (Reference Method)

EN 407 – Protective Gloves Against Thermal Risks

ASTM F1060 – Standard Test Method for Thermal Insulation of Materials

ISO 188 – Rubber, Vulcanized or Thermoplastic – Accelerated Ageing and Heat Resistance

Parameters

ParameterSpecification
Sample SizeDiameter 70 mm
Temperature RangeRoom Temp +5°C to 180°C
Temperature Accuracy±0.5°C
Temperature Resolution0.1°C
Polyethylene Sample Mounting Plate120 × 120 × 25 mm
Mounting Plate Sensor Range0–260°C, ±0.1%
Heating Block Sensor Range0–260°C, ±0.1%
Brass Cylinder Weight3000 ±10 g
Brass Cylinder DimensionsSmall end Φ32 ±0.02 mm H20 ±0.05 mm; Large end Φ76 ±0.02 mm H74 ±0.05 mm
Sensor Detection Point2.5 mm ±0.05 mm from cylinder base
Cylinder Drop Speed25 mm/s (adjustable 1–60 mm/s)
Cylinder Return Speed25 mm/s (adjustable 1–60 mm/s)
Distance from Cylinder to Sample100 mm ±0.5 mm
Polyethylene Protective Plate200 × 250 × 15 mm
Protective Plate Distance to Sample Surface50 mm
Protective Plate Movement Speed80 mm/s
Time Measurement Range0–99999.9 s
Power SupplyAC 220V, 50Hz
Dimensions (L×W×H)540 × 380 × 500 mm
Total Weight40 kg
