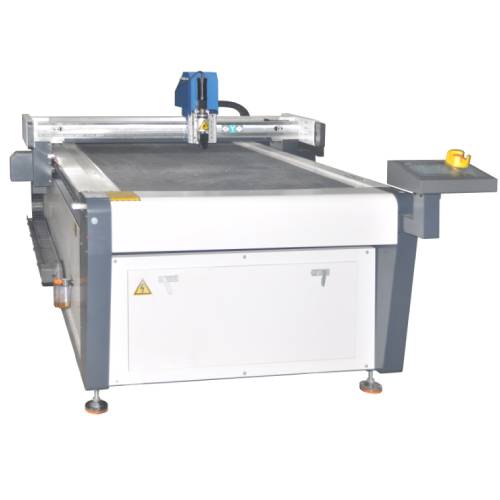

Intelligent Sample Cutting Machine


The Intelligent Sample Cutting Machine is a high-efficiency automated cutting device integrating automation and intelligence. It is widely applied in textiles, garments, footwear and leather, composite materials, and laboratory testing. The machine can accurately and quickly cut samples, significantly improving production efficiency and reducing material waste.

Application

Automated sample cutting in textile, apparel, and footwear industries

Cutting of composite materials for R&D or testing laboratories

Rapid and precise cutting for quality control and material testing

Reducing material waste in prototype or small-batch production

Enhancing efficiency in research, design, and production workflows

Standards

Not explicitly stated; supports standard design formats including PLT, DST, DXF, CAD for cutting files.

Compatible with industrial software for computer-aided cutting.

Parameters

ParameterSpecification
Processing Area1000 × 1000 mm or 1600 × 1200 mm
Machine TypeDesktop or Floor-standing
TransmissionServo motor + planetary straight-head reducer
Work TableVacuum adsorption platform (optional)
Effective Cutting Area1000 × 1000 mm or 1600 × 1200 mm
Speed Control0–100% manual and software control
Drive TypeDual drive / High-speed DSP servo motor or single drive
Cutting Accuracy±0.1 mm (depending on material)
Cutting Speed0–2400 mm/s (depending on material)
Maximum Cutting Thickness4 cm
Control SystemZhongrui / Qiancheng / Ruida (Chinese-English LCD)
Transmission SystemServo motor, linear guide rail, rack and pinion, ball screw
Working EnvironmentTemperature 0–40 °C; Humidity 5–95% (non-condensing)
Supported File FormatsPLT / DST / DXF / CAD
Control MethodComputer-aided design (CAD) control
Data TransmissionIndustrial network port
X/Y Axis MotorX: 750 W, Y: 400 W
Z/W Axis MotorZ: 100 W, W: 100 W
Machine Dimensions1500 × 1400 mm or 2100 × 2000 mm
Power SupplyAC 220 V ±10%, 50/60 Hz
Total Power2 kW
Machine Weight~0.6 t or ~0.8 t
