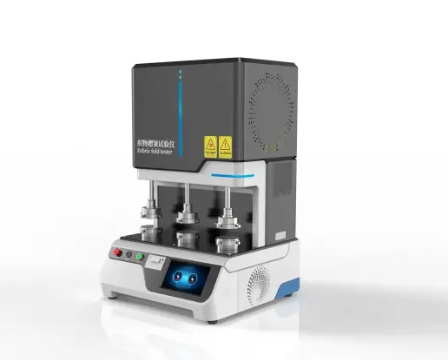

Fabric Wrinkle Bending Tester


The Fabric Wrinkle Bending Tester is a specialized instrument used to assess the wrinkle recovery properties of various textile fabrics. It simulates the conditions that fabrics encounter during actual use, such as pressure and temperature, to evaluate their ability to form and recover from wrinkles

Applications

This tester is widely used in:

Textile Production: Identifying and resolving wrinkle issues in seams, cutting, and sewing processes

Clothing Design: Helping designers understand fabric behavior under different conditions to create more consumer-friendly products

Quality Control: Providing critical data for textile enterprises to ensure product quality and compliance with standards

Standards

The testing methods and results should comply with relevant national or international standards, such as AATCC 128，ISO 9867，ENKA 3061, GB/T 3819,  ISO 2313.

Parameters

ParameterSpecification
Sample SizeStandard: 40 × 15 mm (other sizes available)
Pressure Load10 N (adjustable per standard)
Recovery Angle Measurement0–360° with 1° resolution
Test Time1 s – 9999 s (includes immediate and delayed recovery)
PrincipleVertical or horizontal crease recovery method
Test MethodSample is subjected to specified pressure; recovery angle recorded over time
Ambient ConditionsRoom temperature 20–25°C, relative humidity 50–65% RH
DimensionsApprox. 400 × 250 × 300 mm (L×W×H)
WeightApprox. 25 kg
Power SupplyAC 220 V, 50 Hz, 50 W

Features

Accurate Wrinkle Assessment: Measures immediate and delayed recovery angles with high resolution.

Adjustable Load & Time: Easily set pressure load and test duration according to standards.

Simulated Real Conditions: Mimics pressure and fabric handling conditions in practical use.

Compact & User-Friendly: Space-saving design suitable for labs and QC departments.

Multi-Standard Compliance: Supports AATCC, ISO, ENKA, and GB/T textile testing protocols.

Durable Construction: Reliable mechanical components ensure long-term stability and precision.
