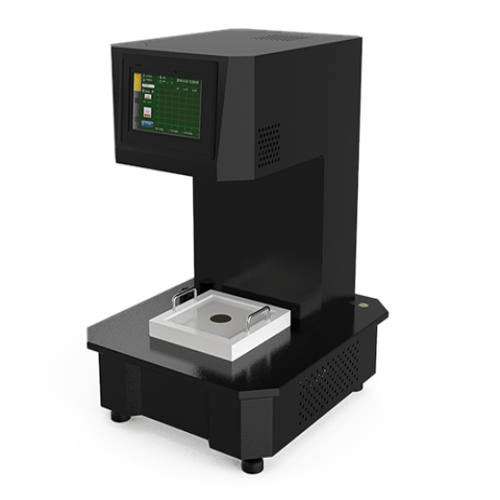

Textile Light and Heat Performance Tester
The Textile Light and Heat Performance Tester is a multi-functional environmental simulation instrument designed to evaluate the durability of textiles under combined light and thermal stress. It measures colorfastness, tensile strength retention, and thermal shrinkage resistance for apparel, upholstery, and industrial textiles. The instrument integrates programmable light and heat exposure cycles, real-time monitoring, and automated data acquisition to provide precise, reproducible results.
Type: Environmental Simulation Testing Chamber
Applications
The tester is widely used in:
Textile Quality Control: Batch testing of fabrics for UV and thermal resistance.
R&D: Developing UV-resistant outdoor apparel, industrial textiles, and protective fabrics.
Forensic Analysis: Assessing garment degradation under light and heat exposure.
Education & Training: Demonstrating textile aging and degradation mechanisms.
Third-Party Testing Labs: Certification of fabric performance under international standards.
Industrial Materials Testing: Evaluating technical fabrics, composites, and polymer textiles.
Standards
ISO 105-B06: Textile colorfastness to light
AATCC 133: Thermal endurance of carpets
GB/T 8427: Colorfastness to artificial light
EN ISO 105-E04: Colorfastness to perspiration
ISO 4892: Light exposure calibration
ISO 17025: Sensor calibration
Product Features
Dual Stress Modes: Simulates combined sunlight and high-temperature environments, or isolates heat for thermal shrinkage testing.
Advanced Detection: Includes UV-Vis spectroscopy for color analysis (400–700 nm), real-time thermal imaging, and AI-based crack/severity detection.
Automation: Motorized sample rotation (0–30 RPM), programmable multi-stage cycles, and automated condensate drainage.
Data Accuracy: ±0.5 ΔE color measurement precision, NIST-traceable irradiance calibration.
Safety & Convenience: Heat-resistant gloves recommended, UV-blocking goggles required, stackable design for lab or bench use.
Maintenance: Self-cleaning condensate system, 5-year lamp replacement warranty, closed-loop water cooling.
Technical Specifications
| Parameter | Specification |
|---|---|
| Light Source | Xenon arc lamp, 1800W, 300–800 nm wavelength |
| Irradiance | 1.12 W/m²/nm @ 340 nm (ISO 4892) |
| Temperature Range | 20–150 °C (±1°C) |
| Humidity Control | 30–90% RH (programmable) |
| Sample Size | Adjustable, up to 100 × 100 mm |
| Test Duration | 1–999 hours, auto-stop function |
| Motorized Sample Rotation | 0–30 RPM |
| Power Supply | 380V, 50Hz, 5 kW |
| Dimensions (L×W×H) | 1500 × 800 × 1800 mm |
| Key Metrics | Color change ΔE (CIELAB), tensile strength retention (%), thermal shrinkage rate (%) |
Accessories
Xenon arc lamp with calibration certificate
Motorized sample rotating frame
UV-blocking protective cover
Thermal and color measurement sensors
Data acquisition and analysis software
Calibration and maintenance tools
