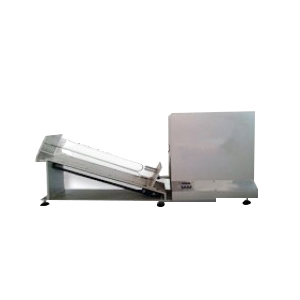

The Fabric Down-Proof Impact Tester uses a controlled impact method to evaluate the anti-drilling performance of down-containing fabrics. The instrument simulates real-world compression shocks on sample bags filled with feathers or feather blends, providing quantitative data on fabric down retention and durability. It is widely used in quality control for down jackets, duvets, and other feather-filled products, ensuring compliance with industry standards for down-proof performance.

Application

This tester is ideal for evaluating all types of down products, including duvets, pillows, jackets, and other feather-filled textiles. By simulating repeated compression impacts, it helps manufacturers ensure the fabric prevents feather leakage and maintains product quality.

Standards

BS EN 12132-2 – Down and feather – Test methods – Impact method

FZ/T 43048-2018 – Down and feather products – Anti-drilling test

QB 1090-1991 – General testing requirements for down products

Feature

(1) Firm and stable steel frame structure ensures durability.

(2) Impact system with two plates: a fixed plate with one impact pin and a movable plate with three pins.

(3) Lower impact plate has three fixed impactors at 120° spacing; pins are 80mm long, 15mm diameter, rounded tip.

(4) Movable plate impact frequency controlled at 35 times/min via crank joystick mechanism.

(5) LED display with preset counter and automatic stop function after set impacts.

(6) Adjustable number of impacts from 1 to 99.999 for flexible testing cycles.

Technical Specifications

Accessories

Included: Impact plates, impact pins, LED counter, power cable, user manual.

Optional: Replacement impact needles, calibration tools, additional sample bags.

Operation & Maintenance

(1) Prepare sample bag filled with feathers and place on slope.

(2) Adjust inclination angle and ensure impact pins are aligned.

(3) Set the number of impacts on the LED counter.

(4) Power on and start the impact test using the crank joystick mechanism.

(5) Monitor the operation and allow the test to complete automatically.

(6) After testing, remove sample and clean impact plates.

(7) Inspect pins and moving parts for wear; replace if necessary.

(8) Perform regular calibration to maintain accuracy.

(9) Keep machine clean and free of dust to ensure stable performance.

(10) Store in a dry environment to prevent corrosion.
