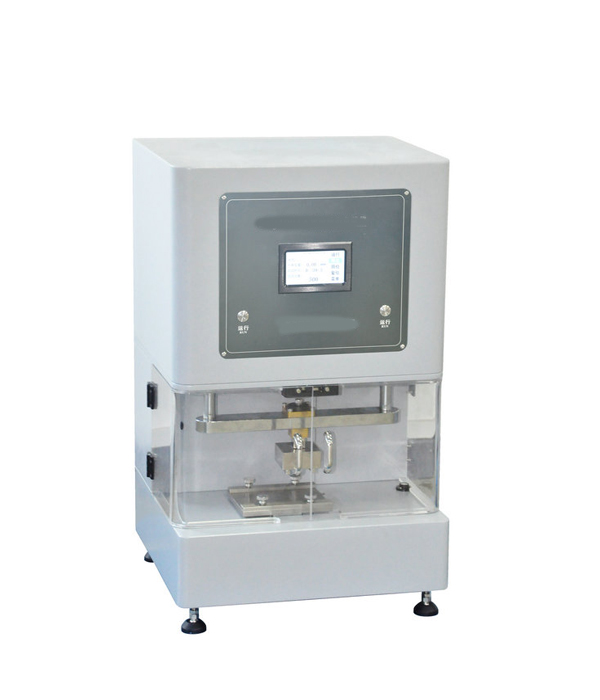

Carpet Dynamic Load Tester


Carpet Dynamic Load Tester is also known as a dynamic load machine. It provides information on the reduction in the thickness of carpet pile by imitating the shearing effects of two actions: the pressure during walking and that from the edges of shoes.

Application

You can use this machine to test:

Residential, commercial, and industrial carpets

Rugs and area mats

Textile flooring products

Quality control and R&D of pile height retention and wear resistance

Standards

The instrument supports international carpet durability testing standards, including:

(1) ISO 2094:1999 (Carpets – Determination of dynamic load resistance)

(2) BS 3654 / ISO alignment (British standard for carpet durability)

(3) QB/T 1091-2001 (Chinese textile flooring standard)

(4) ASTM D3574 Test I4 (US standard for foam and carpet performance)

Parameters

ParameterSpecification
Dimensions (W×D×H)500 mm × 500 mm × 370 mm
Power Consumption250 W
Load TypeTwo rectangular steel feet (51 mm × 6.3 mm, height 9.5 mm)
Impact FrequencyOne impact every 5 seconds
Sample Movement3.2 mm per impact with semi-overlapping area
Stressed Area per Cycle90 mm × 50 mm
Test ModeDynamic back-and-forth motion

Features

Accurately simulates walking pressures and shearing effects on carpet pile.

Provides quantitative measurement of carpet pile reduction for durability evaluation.

Compliant with British, Chinese, and international standard testing methods.

Compact design for easy installation in laboratories and R&D facilities.
