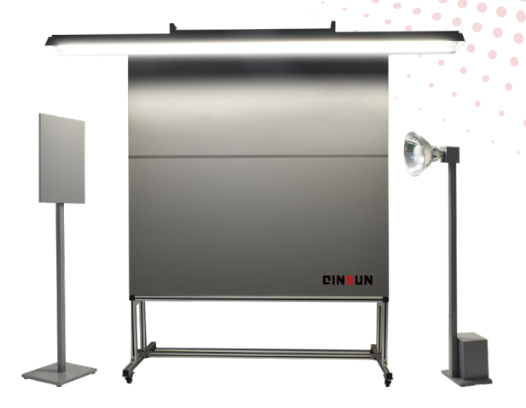

The AATCC Viewing Board is a laboratory instrument designed to evaluate the visual appearance of textile and apparel samples under standardized conditions. It provides controlled lighting and observation surfaces to assess wrinkling, smoothness, seam marks, oil stains, and other surface defects. By comparing samples against standard reference charts, this board enables accurate grading in accordance with AATCC evaluation standards.

Standard

ISO 7768: Durable Fabric Surface Evaluation After Washing

ISO 7769: Wrinkle Assessment Post-Household Washing

ISO 7770: Fabric Joint Flatness Evaluation

AATCC 88B/88C: Seam Smoothness & Pleat Retention After Washing

AATCC 124: Fabric Surface Appearance Post-Repeated Washing

Application

Textile Mills: Assesses surface defects, wrinkles, and seam smoothness post-washing.

Garment Manufacturers: Inspects finished apparel for oil stains, creases, and blemishes.

Quality Control Labs: Validates compliance with AATCC and ISO appearance standards.

Retail & Brand Inspection: Ensures product aesthetics meet consumer expectations.

Product Advantages

Standardized Lighting: Dual 40W cold-white fluorescent lamps ensure consistent color assessment.

Magnetic Sample Fixation: Quick-release magnets secure fabrics without slippage.

Portable Design: Casters enable easy relocation for multi-station use.

Ergonomic Viewing: 5° angled board and 1.5m height reduce operator fatigue.

Global Compliance: Meets AATCC, ISO, and IWS standards for textile inspection.

Durable Construction: White enamel shade and heavy-duty frame withstand daily use.

Product Features

Dual Lighting System: 2.4m (8ft) cold-white fluorescent tubes with rapid preheating.

AATCC Gray Scale Visor: Level 2 gray (matt) visor for accurate stain/blemish grading.

Adjustable Floodlights: 500W panlights with 1.5m ground clearance for directional illumination.

Magnetic Fixation: Samples are held in place without clamps or adhesives.

Mobile Base: Casters allow movement across labs or production lines.

Non-Reflective Surface: White enamel observation board minimizes glare.
