In the footwear manufacturing industry and quality inspection field, the waterproof performance of footwear is one of the key indicators for evaluating product quality. It is especially important for outdoor sports shoes, rain boots, work shoes, and other footwear categories. Traditional static water immersion tests cannot fully simulate the repeated deformation of the upper during human walking. Therefore, the Finished Shoe Dynamic Waterproof Bending Tester was developed.This equipment simulates the walking motion of human feet under wet conditions and performs dynamic flexing tests on finished shoes. It can accurately evaluate the waterproof and anti-permeability performance of finished footwear under actual movement conditions.

Equipment Overview and Working Principle

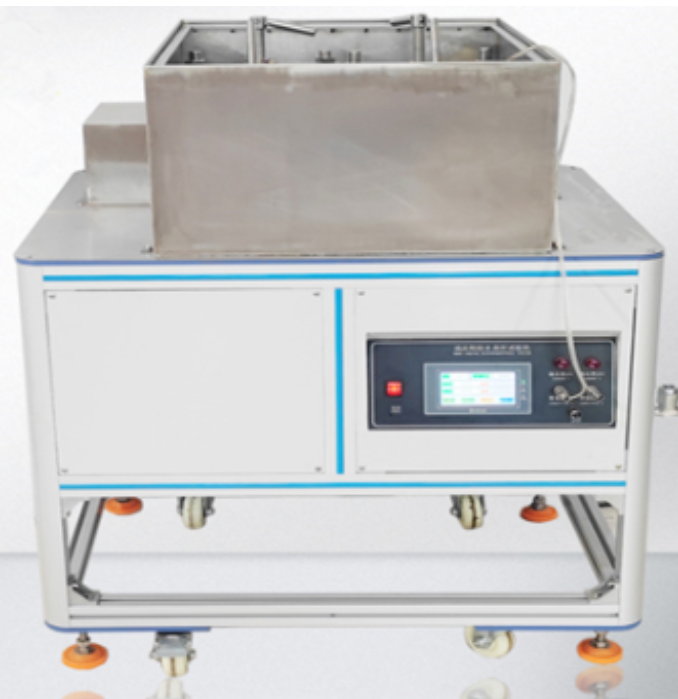

The Finished Shoe Dynamic Waterproof Bending Tester is a precision testing instrument specially designed to evaluate the water resistance and penetration performance of finished shoes, boots, and other footwear products under dynamic bending conditions. Its core design concept is “dynamic simulation,” which recreates real wearing conditions of footwear during walking or running.

Working Principle:

1. Specimen Installation and Fixing

The finished shoe to be tested is mounted onto the dedicated fixture of the testing machine. Generally, the forefoot area is fixed, while the heel or designated testing area is driven by a mechanical actuator to perform bending movements.

2. Water Tank Environment

The tester is equipped with a specialized water tank filled with water to a specified depth. The water is usually dyed to make leakage traces easier to observe. The forefoot or designated test area of the shoe is immersed in the water during the test.

3. Dynamic Flexing Test

According to the preset bending angle and frequency, the equipment drives the shoe to perform repeated bending movements, simulating the periodic bending stress applied to the toe area during human walking or running.

4. Water Leakage Detection

During the bending process, if water penetrates through the upper, sole, or seams into the inside of the shoe, the built-in high-sensitivity detection probe (such as a steel ball, wire mesh, or electronic sensor) will detect the moisture immediately.

5. Automatic Test Evaluation

Once water leakage is detected, the counter automatically stops counting and triggers an audible and visual alarm. The bending cycles or test duration at the moment of leakage are recorded. If no water penetration occurs after reaching the preset number of bending cycles, the footwear is considered to have passed the waterproof test.

Features of the Finished Shoe Dynamic Waterproof Bending Tester

The Finished Shoe Dynamic Waterproof Bending Tester is a specialized testing instrument designed to simulate actual walking conditions and simultaneously evaluate the bending durability and waterproof performance of footwear in a water environment. Its core features include dynamic bending, water immersion testing, and automatic stop triggering upon water leakage detection.

1. Dual Testing Modes

The tester supports two testing modes: timed water immersion testing and dynamic bending test in water. The test duration or bending cycles can be preset, and the equipment automatically stops after completion of the test.

2. Realistic Working Condition Simulation

Through the dedicated fixture, the equipment drives the forefoot or heel area of the shoe to perform repeated bending movements at a preset angle while immersing the test area in colored water, accurately simulating real walking conditions in wet environments.

3. High-Sensitivity Water Leakage Detection

The built-in electronic detection probe can quickly detect even a small amount of water entering the shoe. Once leakage is detected, the system automatically activates audible and visual alarms and stops counting for the corresponding test station.

4. Multi-Station Parallel Testing

Mainstream models support simultaneous testing of 2–4 finished shoes, significantly improving testing efficiency and meeting the requirements of mass quality inspection.

5. Precise Parameter Control

The bending speed is typically adjustable within 60–140 cycles/min, with multi-level or stepless angle adjustment options. The cycle counter can be preset up to 0–999.999 cycles, ensuring accurate and reliable test results.

Applications of the Finished Shoe Dynamic Waterproof Bending Tester

The Finished Shoe Dynamic Waterproof Bending Tester is specially designed to simulate real walking conditions and evaluate the waterproof and anti-permeability performance of finished footwear. Its main applications include research and development verification, mass production quality inspection, and compliance evaluation according to relevant standards.

1. Dynamic Waterproof Performance Evaluation

The tester simulates the repeated bending motion of the forefoot during human walking while immersing the footwear in water. It evaluates whether water penetrates through the upper, seams, or materials under dynamic stress conditions, and determines the number of bending cycles required for water leakage or the waterproof integrity within a specified test duration.

2. Quality Control and Finished Product Inspection

The equipment is widely used by footwear manufacturers for laboratory testing or production line quality control. It can perform batch sampling inspections on finished products such as sports shoes, rain boots, work shoes, and outdoor footwear to ensure that waterproof performance meets requirements and prevent non-conforming products from entering the market.

3. Product Development and Process Improvement

By analyzing waterproof failure data of different materials and structural designs (such as waterproof membrane bonding and stitching processes) under bending fatigue conditions, the tester provides valuable guidance for footwear design optimization and material selection.

4. Standard Compliance and Certification Testing

The tester can be used to perform tests according to relevant domestic and international standards, providing reliable data support for product safety certification, quality verification, and export compliance requirements.

Value of Finished Shoe Dynamic Waterproof Bending Testing

For footwear manufacturers and consumers, dynamic waterproof bending testing provides significant practical value and multiple benefits.

1. Detection of Hidden Defects

This test can effectively identify potential leakage points caused by improper structural design, poor adhesive bonding, material fatigue, and other factors. These defects are often difficult to detect through conventional static immersion tests. By simulating dynamic stress conditions, the test helps prevent water penetration issues that may occur during actual use.

2. Improvement of Wearing Experience

By simulating real walking conditions involving repeated bending and water exposure, the test ensures that footwear maintains reliable waterproof performance during long-term activities such as walking and running. It helps keep the inside of the shoe dry, significantly improving wearing comfort and enhancing consumers’ confidence in product quality.

3. Basis for Quality Control

The test results provide objective and quantitative data for evaluating the waterproof durability of footwear products. These data help manufacturers accurately identify weak points in production processes, optimize manufacturing techniques, improve product quality, reduce after-sales complaints, and protect brand reputation.

Conclusion

The Finished Shoe Dynamic Waterproof Bending Tester is an important tool for ensuring footwear quality in the shoe industry. Equipment selection should be based on testing requirements, budget, and future expansion needs. With continuous technological development, these testing systems are becoming increasingly intelligent and integrated, providing more comprehensive and accurate evaluation of footwear waterproof performance.
