In today's era of pursuing a high quality of life, people's demands for fabrics are no longer limited to aesthetics; they also prioritize comfort and functionality. As key indicators of comfort, fabric air permeability and moisture permeability are receiving increasing attention. To accurately measure fabric air and moisture permeability, fabric moisture permeability testers have emerged, providing a new perspective and superior solutions for fabric performance evaluation.

A fabric moisture permeability tester is a specialized textile-based tool used to measure the moisture permeability of a variety of fabrics. These fabrics may be chemically coated or other non-woven fabrics (cotton lint, space cotton, athletic fabrics). Fabric samples are placed in a test chamber where the temperature and humidity meet the test standards. Moisture transmission is measured using a desiccant such as anhydrous calcium. The sample is then poured into a moisture permeability cup and covered with the sample fabric. The cup is then placed in the chamber, and the test results are displayed on a digital display. The fabric air permeability tester, part of the gas permeability tester family, is suitable for testing the air permeability of a variety of textiles, including technical fabrics, nonwovens, and other breathable products such as sponges, as well as highly breathable materials such as paper. It is suitable for measuring the air permeability of various textile fabrics, including industrial fabrics, non-woven fabrics and other textile products and other breathable materials.

Working and Testing Principle

The fabric water vapor permeability tester operates primarily based on the humidity differential method. The device divides the sample into two climate chambers, creating a difference in humidity between indoor and outdoor conditions. This allows observation of water vapor transmission caused by this humidity differential. The water vapor permeability tester is equipped with a high-precision sensor that accurately measures the water vapor pressure differential within the sample. By calculating the humidity differential and sample size, the fabric's water vapor permeability index (VPI) can be calculated, thereby evaluating the fabric's breathability.

The test principle involves placing a pre-conditioned sample between upper and lower test chambers and clamping them. First, the low-pressure chamber (lower chamber) is vacuumed, followed by the entire system. Once the specified vacuum level is reached, the lower chamber is

 closed, and the high-pressure chamber (upper chamber) is filled with test gas at a specified pressure. A constant (adjustable) pressure differential is maintained across the sample. This pressure gradient causes gas to permeate from the high-pressure side to the low-pressure side. By monitoring the pressure within the low-pressure side, the various barrier parameters of the tested sample are determined.

Equipment Configuration and Operating Specifications

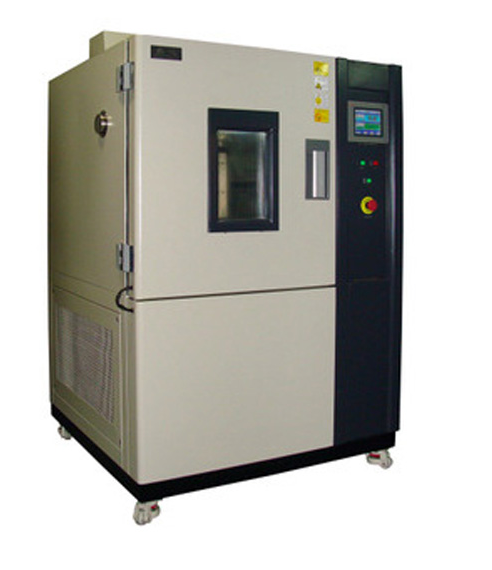

1. Hardware Components: The instrument primarily consists of a main housing with a cooling system, a control cabinet, vapor permeability cups (including American standard square/round and Chinese standard models), a PID self-tuning temperature and humidity controller, a digital timer, and other components. Vapor permeability cups of different standards are suitable for specimens of varying thicknesses and thicknesses. They must be installed according to specifications and regularly inspected for leaks.

2. Parameter Setting: Test parameters such as temperature, humidity, and test time are entered via the color touchscreen or a dedicated interface. The intelligent control system displays the current temperature and humidity values and the remaining test time in real time and automatically calculates moisture permeability-related indicators. Users should select a preset program or a custom mode based on the sample type and test purpose.

3. Safety Precautions: The power supply must comply with AC 220V, 50Hz specifications and ensure proper grounding. The instrument should be placed away from obstacles to facilitate heat dissipation and maintenance. During extended operation, monitor the heating power and humidification capacity to ensure they are within normal ranges.

4. Specimen Preparation and Loading: Cut specimens should be placed flat on the opening of the vapor permeability cup to avoid wrinkles or stretching. For multi-layered materials, stack each layer and secure them securely to ensure consistent contact areas. After loading, activate the rotating bracket to ensure uniform testing of the specimen.

5. Data Recording and Analysis: After the test, save the data and generate a report. Modern instruments often support printing, allowing for direct output of reports containing key indicators such as WVT, WVP, and PV values, facilitating subsequent comparative analysis and quality control.

Application Areas and Importance

The application areas and importance of equipment related to color fastness to rubbing testing are extensive and significant. In the textile industry, during the apparel R&D phase, these tests can evaluate the performance of waterproof and breathable fabrics for outdoor clothing, sportswear, raincoats, and other applications, providing data support for product development and material selection. For example, testing can optimize fabric structure and balance waterproofness and breathability to enhance wearer comfort. In quality control, these tests can promptly identify defects in fabric breathability or waterproofness, ensuring product compliance with industry standards such as GB/T 12704 and ISO 9237. thereby avoiding market recalls or legal risks caused by quality issues. In the footwear industry, these tests can be used to test the breathability of waterproof and breathable footwear materials, ensuring that they are both waterproof and breathable, reducing foot heat and improving health and comfort. In the medical field, the breathability of medical textiles, such as surgical gowns and bandages, directly impacts patient recovery outcomes. Using these testers, medical standards can be ensured and prevent skin problems caused by insufficient breathability. In the military, combat uniforms, tents, and other equipment must maintain breathability in harsh environments. Testers can verify equipment performance and improve soldier efficiency and comfort. Furthermore, in the construction and automotive interior sectors, they can evaluate the breathability of roof waterproofing materials, exterior wall insulation materials, and automotive seat fabrics, optimizing product design and enhancing performance and comfort.

Maintenance

To ensure stable operation and measurement accuracy, equipment maintenance is crucial. First, regular calibration is essential. It is recommended to regularly calibrate key components such as temperature and humidity sensors and flow meters. Reference materials or third-party measurement tools can be used to verify instrument accuracy. Second, proper cleaning and maintenance are essential. After each test, remove any remaining moisture and impurities from the vapor permeability cup to prevent corrosion or deterioration. Also, inspect pipe connections for leaks and replace seals if necessary. If the equipment is not in use for an extended period, disconnect the power cord and store it in a dry, well-ventilated area. Third, pay attention to troubleshooting. If the device generates abnormal alarms or experiences significant data fluctuations, immediately shut down and inspect. Common causes include sensor failure, air path blockage, and unstable power supply. Refer to the manual for step-by-step troubleshooting and resolution.

In today's increasingly demanding world of fabric quality, fabric moisture permeability testers, with their scientific operating and testing principles, comprehensive equipment configuration, and standardized operating procedures, play an irreplaceable role in evaluating fabric air and moisture permeability. Their wide range of applications, encompassing industries such as textiles, footwear, healthcare, military, construction, and automotive interiors, not only provides critical data support for product development and quality control, ensuring product comfort and functionality, but also driving overall quality improvement across the industry. Proper equipment maintenance is the cornerstone for ensuring stable operation and accurate measurements. Only in this way can fabric moisture permeability testers continue to contribute to the development of high-quality fabrics and meet people's pursuit of a better life.
