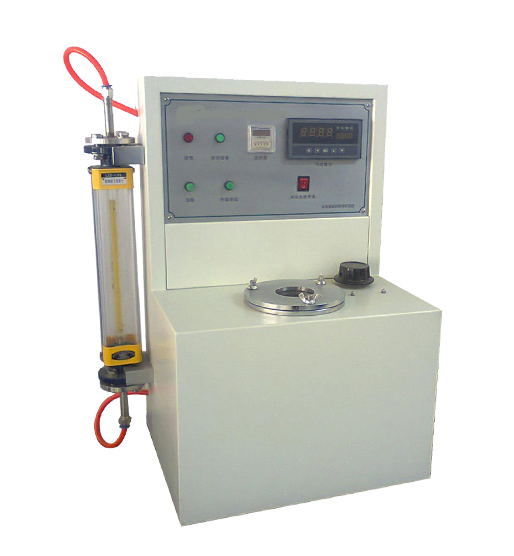

The respiratory tubing airflow resistance tester measures the airflow resistance of respiratory tubing by introducing a controlled airflow into the tubing and measuring the resulting pressure changes. This measurement is crucial for assessing the patency of the tubing, optimizing ventilator settings, and reducing the work of breathing for patients. This tester is suitable for use by quality control agencies, medical device testing institutes, research institutions, and medical device manufacturers, and can test various types of tubing, including both medical and industrial respiratory tubing. As a professional testing device, the performance of the airflow resistance tester directly impacts the accuracy and reliability of the test results. The airflow resistance tester manufactured by Standard Group (Hong Kong) Limited, with its advanced technology and user-friendly design, has become the preferred choice among industry users. This article will delve into the technical features, application scenarios, and market value of this airflow resistance tester, providing valuable reference information for professionals in this field.

Technical Features

The airflow resistance tester boasts several outstanding advantages:  It utilizes top-brand sensor systems and high-precision control chips, ensuring highly accurate and stable test results with a very high data acquisition frequency.  The built-in electronic flow meter further enhances flow control accuracy, with an error rate far below industry average. This high-precision design effectively meets the stringent testing requirements for medical devices such as respiratory tubing.  For user experience, the device features a large, color touchscreen for intuitive display of test results, allowing real-time viewing of measurements and statistical data. The user interface is simple and easy to operate, even for non-technical users.  A built-in mini-printer allows for quick printing of test results and statistics, facilitating data recording and archiving.  Regarding data management and security, the tester prioritizes data integrity and security.  A four-level user access control system flexibly manages user permissions, strictly limiting unauthorized access and ensuring data traceability.  A robust data encryption and storage mechanism securely stores each test data set, preventing tampering and ensuring compliance for testing laboratories and manufacturers.  In terms of performance, optimized hardware design and high-performance control chips ensure excellent speed and stability, even during high-frequency testing or prolonged operation, significantly improving efficiency.

Working Principle

The core principle of the respiratory tubing airflow resistance tester is based on Bernoulli's equation and the resistance formula in fluid mechanics. When gas flows through a tube, pressure loss occurs due to friction with the tube walls, bends, and changes in cross-sectional area—this is the airflow resistance. The testing device simulates the human breathing process by injecting gas with a specific flow rate and pressure into the respiratory tubing, and then precisely measures the pressure difference and flow rate changes before and after the gas passes through the tubing, thus calculating the airflow resistance of the tubing.

Test Method

The test method for airflow resistance of respiratory tubing typically follows relevant standards and specifications, such as Appendix A of YY0461. During the test, the test pressure and nominal flow rate are adjusted, and the pressure difference (△P=P2-P1) before and after connecting the nasal cannula is recorded; this represents the airflow resistance. For testing the airflow resistance under bending conditions, after completing the initial airflow resistance test, the tubing is suspended over a small-diameter metal rod, with a weight attached to one end to ensure the tubing maintains contact with half the circumference of the rod. Air is then introduced into the tubing at the manufacturer's specified nominal flow rate, and the pressure increase is recorded.

Application Scenarios

The airflow resistance tester is specifically designed for testing the airflow resistance of respiratory tubing, complying with YY 0461-2003 "Respiratory Tubing for Anesthesia and Ventilator Machines."  It is widely used in the following scenarios:

Respiratory Tubing Manufacturers：During the production of respiratory tubing, airflow resistance is a key performance indicator, directly affecting product comfort and safety. The airflow resistance tester provides manufacturers with accurate test data, helping to optimize product design and quality control.

Medical Device Testing Laboratories：Testing laboratories require efficient and reliable equipment for large-scale testing. The high accuracy and fast printing capabilities of the airflow resistance tester significantly improve testing efficiency, while its data encryption and access control features ensure the authority and compliance of the test results.

R&D and Quality Certification：During product development and quality certification, the airflow resistance tester provides reliable testing support, helping to verify that product performance meets industry standards and facilitating rapid product launch.

Maintenance and Care Procedures

To ensure the instrument operates correctly and provides accurate and reliable test results, a series of maintenance and usage procedures must be followed: Regularly clean the instrument, including its surface and internal components, to prevent dust and dirt accumulation. Use a soft cloth to clean the sensors and connectors, and avoid using corrosive cleaning agents. Regularly check the performance and accuracy of the sensors. If sensor sensitivity decreases or measurements become inaccurate, calibrate or replace the sensors promptly. Store the instrument in a dry, well-ventilated environment to prevent moisture damage and corrosion. Regularly calibrate the instrument using standard tubing and a gas flow meter to ensure the accuracy and reliability of the measurements. When using the instrument, strictly follow the operating procedures to prevent damage or inaccurate results due to improper operation. During testing, ensure safety precautions are taken, avoiding contact with moving parts or high-temperature areas.  Ensure a safe testing environment to prevent fires, explosions, or other accidents.  Finally, select the appropriate tubing before testing, as the specifications, material, and length of the tubing can affect the test results.  Choose the tubing based on the test requirements and actual conditions.

By following these maintenance and care procedures, the lifespan and performance of the airflow resistance tester can be extended, providing robust support for air quality and gas detection applications.

In summary, the respiratory circuit airflow resistance tester, with its advanced technology, user-friendly operation, reliable data management, and superior performance, holds a significant position in the field of respiratory circuit testing. Its wide range of applications, from manufacturing and quality control to certification and R&D, plays an indispensable role in ensuring product quality, improving production efficiency, and promoting industry development. Furthermore, rigorous maintenance and calibration procedures are crucial to ensuring the tester's continuous and stable operation and accurate data output. Only through proper daily cleaning, inspection, and calibration, along with standardized operation and safety protocols, can the instrument's lifespan be extended and its performance maintained at an optimal level. We believe that with continuous technological advancements, the respiratory circuit airflow resistance tester will continue to evolve and improve, providing even stronger support for quality control and safety assurance in the medical device industry, and contributing even more to human health.
